Product Overview

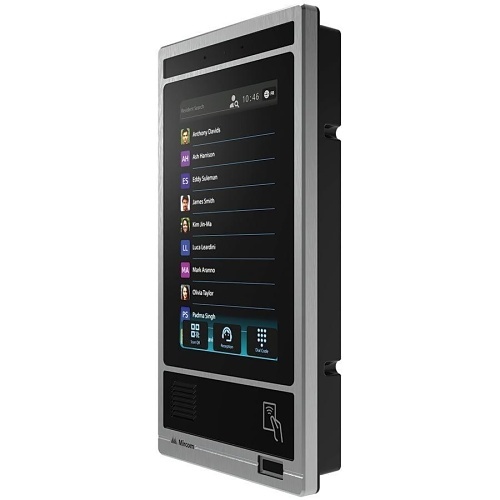

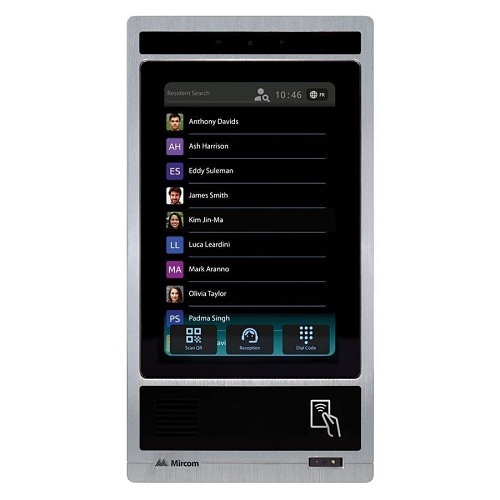

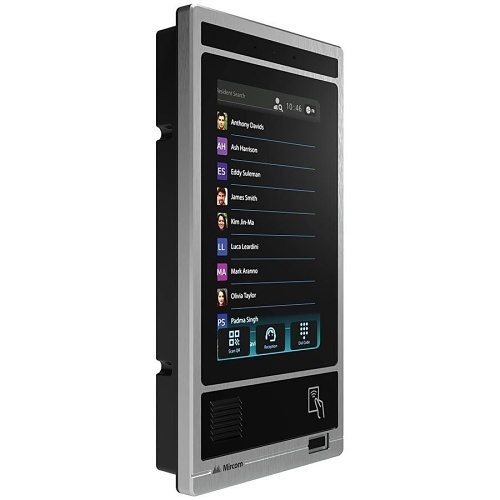

Mircom's TX3-T10 Touch Access System is a cutting-edge solution designed to provide a modern, visually stunning, and intuitive user experience. With a vandal and weather-resistant enclosure and innovative features, this system is fully customizable for occupant and visitor access control in various settings. The system introduces several innovative features to deliver a comprehensive solution for occupant and visitor access control in condominiums, apartment buildings, office buildings, gated communities, and industrial buildings. The 10" full-color touch display provides wide viewing angles, which is sure to impress visitors and occupants alike.TX3-T10's built-in controller manages access for two doors via 2-relays and supports 2-readers, there is 1 built-in proximity card reader with provision for an external card reader.
Main Features
- Full-color 10" touch display for an impressive visual experience
- Dark and light themes automatically adjust to ambient light levels, ensuring optimal readability day and night
- Call button, scrolling name directory and name grouping for an easy and intuitive call interface
- 2-Built-in keyboard layouts (Full QWERTY, or QWERTY (English and French) Numpad)
- Enables communication through traditional phone lines (PSTN) or the Mircom MiVoIP cloud service for seamless VoIP connectivity
- Speaker and dual microphones with noise reduction and beam-forming technology for clear 2-way audio call
- QR Code scanner enables temporary visitor access by scanning QR codes generated through the MiEntry app
- Programmable through the TX3 local configurator via an Ethernet connection
- Programmable 4-supervised inputs and 2-outputs
- Powered by PoE (IEEE802.3at/Type2) or an external power supply (24-48VDC / 30W)
General Information
Name: Mircom TX3-T10-G TX3 Series 10" Touch Screen Video Intercom System, VoIP/PSTN, Space Gray
Category: Mircom, Communications, Intercoms & Telephone Entry, Intercom Master Stations
UPC Code:
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number MI-TX3T10G Brand Name Mircom Manufacturer Part Number TX3-T10-G Product Series TX3
Effective Camera Resolution 5MP Identification Method Contactless Card (RFID/Proximity), PIN/Passcode Power Consumption 30.0000W
Audio Encoding G.711
Ingress Protection Rating IP65
Screen Size 10" Touchscreen Yes
Operating Temperature (T-T) -22-122°F
Memory Size 2GB
Ethernet Technology 1 Gbps (Gigabit Ethernet), 10 Mbps (Ethernet), 100 Mbps (Fast Ethernet)
Color Gray Depth 2.20" Dimensions 14.5" x 7.7" x 2.2" Durability Vandal Resistant, Weather Resistant Height 14.50" Weight 5.60lb Width 7.70"
Input Voltage 24-48V DC Power Source PoE (Power over Ethernet)
Mount Type Flush Mount, Surface Mount Operating Frequency 125kHz
Limited Warranty 3-Year
Indoor/Outdoor Indoor
