Lynn Electronics D-L2L2-3R2-020M Line Card 1 OM3 Duplex Fiber Optic Cable, 20m, 2.0mm
D-L2L2-3R2-020M|LR-DL2L23R20
Lynn Electronics D-L2L2-3R2-020M Line Card 1 OM3 Duplex Fiber Optic Cable, 20m, 2.0mm
D-L2L2-3R2-020M|LR-DL2L23R20
Lynn Electronics
Lynn Electronics D-L2L2-3R2-020M Line Card 1 OM3 Duplex Fiber Optic Cable, 20m, 2.0mm
D-L2L2-3R2-020M | LR-DL2L23R20
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

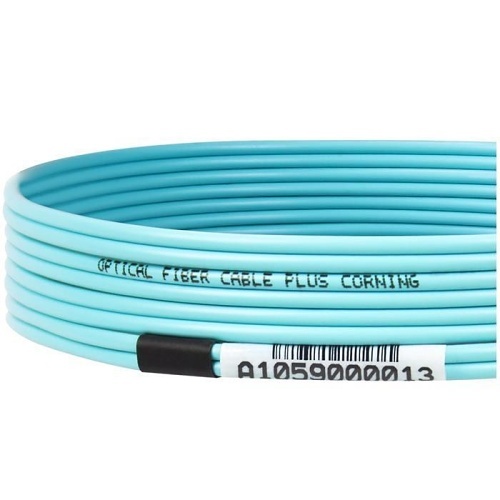

Laser optimized fiber optic cable capable of supporting 40 Gigabit Ethernet (40GBASE) and 100 Gigabit Ethernet (100GBASE) networks up to 150 meters. Supports 10 Gigabit Ethernet (10GBASE-SR) networks up to 550 meters. Includes flammability rating OFNR (Riser) jacket with heat shrink to prevent the zipcord from separating from the connector. Constructed with the highest quality Corning Clearcurve Bend Insensitive Fiber (BIF) glass. This premium construction allows us to deliver the best macro-bending performance in the industry – up to 10x less signal loss in tight bend scenarios. Fiber patch cable can be installed in loops less than an 7.5 mm radius producing less than 0.2 dB bending loss at 850nm to meet the demands for today’s hyper-scale data centers. Each cable is tested to meet industry standards. Test results are included in a sticker in the bag for every cable for easy documentation.
Main Features
General Information
Name:Lynn Electronics D-L2L2-3R2-020M Line Card 1 OM3 Duplex Fiber Optic Cable, 20m, 2.0mm
Category:Lynn Electronics, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords
UPC Code:
Country of Origin:China. Country of origin is subject to change.
Specifications
ADI Part Number LR-DL2L23R20 Brand Name Lynn Electronics Manufacturer Part Number D-L2L2-3R2-020M

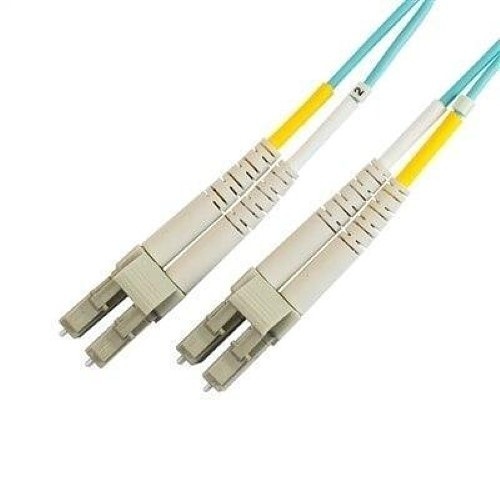

Connector on First End LC Connector on Second End LC Core/Cladding Diameter 50/125µm Fiber Count 2 Jacket Type OFNR
Cable Length 65.6'
Environmental Certification RoHS Complaint Environmentally Friendly Yes
