Nascom N1178C1175B/STSD 3/4" Stub SPDT Relay with 12" Length, 12", Black
N1178C1175B/STSD|J8-N78C75BTD
Nascom N1178C1175B/STSD 3/4" Stub SPDT Relay with 12" Length, 12", Black
N1178C1175B/STSD|J8-N78C75BTD
Nascom
Nascom N1178C1175B/STSD 3/4" Stub SPDT Relay with 12" Length, 12", Black
N1178C1175B/STSD | J8-N78C75BTD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

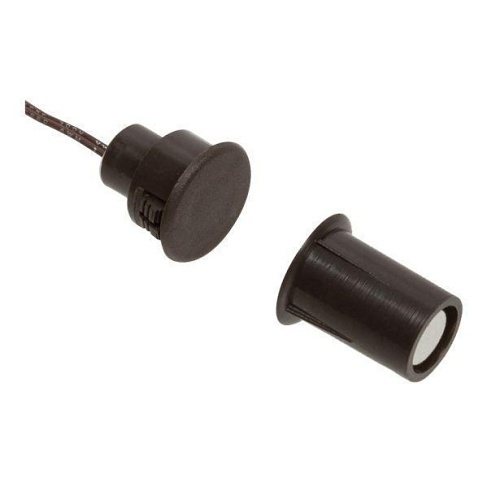

The N1178C1175B-STSD from Nascom is a recessed 3/4" stubby SPDT switch for steel/wood doors, 3/8" press fit magnet, wire leads, brown. The N1178C 1175 Series is a 3/4- recessed stubby door contact designed for residential, commercial and industrial steel and wood door applications. The 3/8- press fit mini magnet provides installation flexibility where gap is not an issue. The N1178C 1175 is the installer's choice of contact configuration because the contact set is designed to cut installation times and helps to prevent false alarms caused by shifting or warping doors. The N1178C 1175 Series is designed for installation in every type of hinged door including wood doors.
Main Features
General Information
Name:Nascom N1178C1175B/STSD 3/4" Stub SPDT Relay with 12" Length, 12", Black
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N78C75BTD Brand Name Nascom Manufacturer Part Number N1178C1175B/STSD
Color Brown
Input Current 0.2A Input Voltage 30V DC
Contact Type Single Pole Double Throw (SPDT)
Environmental Certification UL Environmentally Friendly Yes Features 12" 22Awg Wire Leads, Encapsulated Hermetically Sealed Contacts, Listed To Ul634 Standard, N35 NdFeB RARE EARTH MAGNET, Polypropylene Housings, Snap Fit On Steel - No Glue Required
