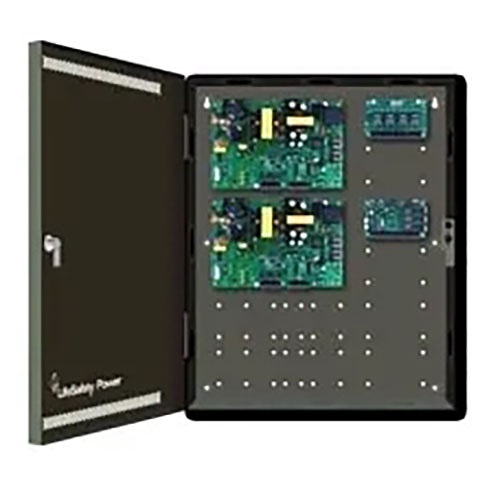

Image of J7-F250BCD4M
Shop all LifeSafety Power

LifeSafety Power FPO250-B100C8D8E4M Access Control Power Supply System, Single and Dual Voltage, Fused, 120/230VAC, 8A, 282W, 8-Output Auxiliary, 20"x4.5"x16"

FPO250-B100C8D8E4M|J7-F250BCD4M
Shop all LifeSafety Power

LifeSafety Power FPO250-B100C8D8E4M Access Control Power Supply System, Single and Dual Voltage, Fused, 120/230VAC, 8A, 282W, 8-Output Auxiliary, 20"x4.5"x16"

FPO250-B100C8D8E4M|J7-F250BCD4M

Sign In for Dealer Pricing

Become an ADI Customer
LifeSafety Power

LifeSafety Power FPO250-B100C8D8E4M Access Control Power Supply System, Single and Dual Voltage, Fused, 120/230VAC, 8A, 282W, 8-Output Auxiliary, 20"x4.5"x16"

FPO250-B100C8D8E4M | J7-F250BCD4M

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The FlexPower FPO250-B100C8D8E2 is a dual voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry. Providing for 12V system power, eight access controlled trigger inputs, eight 12/24V access controlled lock outputs, and eight 12/24V auxiliary power distribution outputs, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. Each relay controlled, lock output is individually programmable for fire alarm disconnect, fail-safe, fail-secure, or NO/NC dry contact. Each auxiliary output is programmable for continuous power output from either of the two power supplies. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status. Designed specifically to support the dual voltage requirement of 12 and 24VDC, this unit utilizes an FPO to generate 24VDC and a B100 to generate 12VDC. The FPO/B100 combination offers significant space and cost savings, and requires only one battery set to backup both DC voltages.

Main Features

  • The Microprocessor Controlled Charging Process Used by the Flexpower Power Supply Guarantees Both Proper Charging Current for the Battery and Fastest Charge Time
  • The Constant Current Charger Provides a Linear, Predictable Charge Time for any Lead Acid, Gel Battery Set from 4 to 80 Ah
  • RoHS Compliant

    • General Information

    Name:LifeSafety Power FPO250-B100C8D8E4M Access Control Power Supply System, Single and Dual Voltage, Fused, 120/230VAC, 8A, 282W, 8-Output Auxiliary, 20"x4.5"x16"
    Category:LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
    UPC Code:811711025141
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
