Inaxsys LGNXTO5DIWFB LegendNX IP 5MP Turret Camera with 2.8mm Fixed Lens for Outdoor Use, Black
LGNXTO5DIWFB
|IN-LGX5DIWFB
Shop All Inaxsys Security Systems
Inaxsys LGNXTO5DIWFB LegendNX IP 5MP Turret Camera with 2.8mm Fixed Lens for Outdoor Use, Black
LGNXTO5DIWFB | IN-LGX5DIWFB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

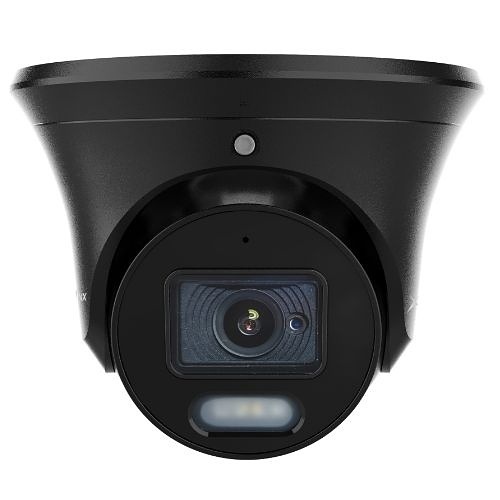

The Inaxsys LGNXTO5DIWFB LegendNX IP 5MP Turret Camera is designed for outdoor use and features a 2.8mm fixed lens. It provides 5MP resolution, supports H.265 Compression, and includes 120 dB WDR for image performance. An IP67-rated metal housing and black finish define the camera’s construction. The camera supports PoE and ONVIF Profiles S/G/T, and is NDAA Compliant.
Main Features
- 5MP Resolution
- 2.8mm Fixed Lens
- IP67 Rated Housing
- For Outdoor Use
- NDAA Compliant
General Information
Name: Inaxsys LGNXTO5DIWFB LegendNX IP 5MP Turret Camera with 2.8mm Fixed Lens for Outdoor Use, Black
Category: Inaxsys Security Systems, Video Surveillance, IP Cameras, Turret Cameras
UPC Code: 685225308874
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number IN-LGX5DIWFB Brand Name Inaxsys Security Systems Manufacturer Part Number LGNXTO5DIWFB Product Series Legend Product Type Network Camera Supported Network Protocols DHCP, DNS, FTP, HTTP, HTTPS, NTP, RTCP, RTSP, SMTP, TCP, UDP
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 114° Field of View (Vertical) 61.0° Image Sensor CMOS Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Night Vision Type Infrared (IR) Protocols DHCP, DNS, FTP, HTTP, HTTPS, ONVIF, RTSP, TCP, UDP Video Formats H.264, H.264+, H.265, H.265+, MJPEG Wide Dynamic Range Yes
Memory Card Slot Yes Video Encoding H.264 (AVC), H.265 (HEVC), MJPEG
Camera Type Turret Camera Image Sensor Type CMOS Night Vision Distance 30.00m
Ingress Protection Rating IP67
Maximum Video Resolution 2960 x 1664
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 0.95
Longest Shutter Speed 1/3 s Shortest Shutter Speed 1/100000 Second
Network (RJ-45) Yes Number of Ethernet Ports 1
Focal Length 2.8mm Lens Included Yes Maximum Focal Length 2.8mm
Ethernet Yes Remote Management Yes
Color Black Durability Dust Resistant, Water Resistant Form Factor Turret
Input Voltage 12V DC Power over Ethernet (PoE) Yes Power Source DC Power, PoE (Power over Ethernet)
Diameter 4.1"
Additional Information Camera form factor, nominal resolution, housing color, illumination and lens class are conservatively decoded from the exact LegendNX model code and cross-checked against the linked manufacturer catalog. Features dual illumination Indoor/Outdoor Indoor, Outdoor Operating System Compatibility Android, iOS
