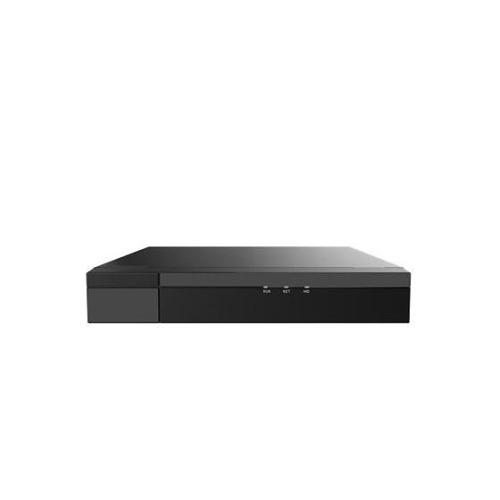

Inaxsys INLG4414KN Legend 4-Channel 4K NVR with 4-Port PoE and No HDD Included
INLG4414KN
|IN-INL4414KN
Shop All Inaxsys Security Systems
Inaxsys INLG4414KN Legend 4-Channel 4K NVR with 4-Port PoE and No HDD Included
INLG4414KN | IN-INL4414KN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Inaxsys INLG4414KN is a 4-Channel 4K NVR for video recording, with 4-channel input and 4-Port PoE. It supports 4K resolution and H.265 / H.264 Compression. HDMI and VGA Video Outputs provide video output connections, and no HDD is included.
Main Features
- 4-Channel Support
- 4K Resolution
- 4-channel input
- 4-Port PoE
- HDMI and VGA Video Outputs
- Supports H.265 / H.264 Compression
General Information
Name: Inaxsys INLG4414KN Legend 4-Channel 4K NVR with 4-Port PoE and No HDD Included
Category: Inaxsys Security Systems, Video Surveillance, Recording Devices & Servers, Network Video Recorders (NVRs)
UPC Code: 685225603818
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number IN-INL4414KN Bandwidth 80Mbps Brand Name Inaxsys Security Systems Manufacturer Part Number INLG4414KN Power Supply DC 48V/1.35A Product Series Legend Supported Resolutions 1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2560 x 1944, 2592 x 1520, 2592 x 1944, 2688 x 1520, 3072 x 2048, 3840 x 2160, 4096 x 2160, 720 x 480, 720 x 576
Effective Camera Resolution 8MP Maximum Data Transfer Rate 64Mbps Network Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface Number of Channels 4 Number of Remote Users Supported 128 Power Consumption 9W Protocols DHCP, DNS, HTTP, HTTPS, IPv4, RTSP, SNMP, TCP Video Formats H.264 Baseline Profile, H.265 Baseline Profile, H.265+
Certifications & Standards CE, FCC, UL, WEEE NDAA Compliant Yes RoHS Compliant Compliant
Operating Humidity Operating Temperature (T-T) 14-131°F undefined
Number of HDMI Outputs 1 Number of USB Ports 2 Number of VGA Outputs 1 USB Standard USB 2.0, USB 3.0
Networking Standards IEEE 802.3af
Color Black Dimensions 260mm x 240mm x 47mm Weight 2.43lb
Hard Drive Capacity 2Tb Number of Hard Drives Supported 1
