Product Overview
The ACM4ECB and ACM8ECB are used with an access control system to power Egress doors and to isolate the access control system from coil induced voltage spikes. Each powered relay output is triggered by an independent input. The ACM also provides Fire Alarm Control Panel (FACP) activation with either latching or non-latching functionality to drop power to selected Egress doors.
Main Features
- Input 120/240V AC
- Output 12/24V DC total of 7.5A
- 8-Output Rated at max. 2.0A
- Battery Charger 1.5A
- Battery Capacity up to 17Ah
- Listing ULC608931-11-1, ULC-S533 Egress Door
- UL294, EMC Industry Canada FCC, EN
General Information

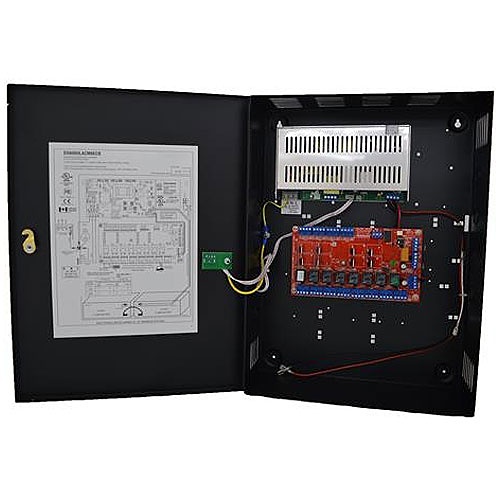

Name: Inaxsys DX600ULACM8ECB Power Supply
Category: Inaxsys Security Systems, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 685225400646
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number IN-DX6UACM8E Brand Name Inaxsys Security Systems Country of Origin CA Manufacturer Inaxsys Security Systems Inc Manufacturer Part Number DX600ULACM8ECB Product Model DX600ULACM8ECB Product Name 6A 12/24VDC ULC Listed Power Supply With 8 ECB Out Product Type Power Supply
Output Voltage 12V DC, 24V DC
Input Voltage 120V AC, 240V AC
Environmental Certification UL, ULC
