Da-Lite 29223 Wireline Advantage Electric Projection Screen, Ceiling Mounted, Ceiling Trim Flange, 16:9 HDTV, HD Progressive 1.0, 120V, Trim Flange, 220" Screen, TAA Compliant
29223
|HI-29223
Shop All Da-Lite by Legrand
Da-Lite 29223 Wireline Advantage Electric Projection Screen, Ceiling Mounted, Ceiling Trim Flange, 16:9 HDTV, HD Progressive 1.0, 120V, Trim Flange, 220" Screen, TAA Compliant
29223 | HI-29223
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

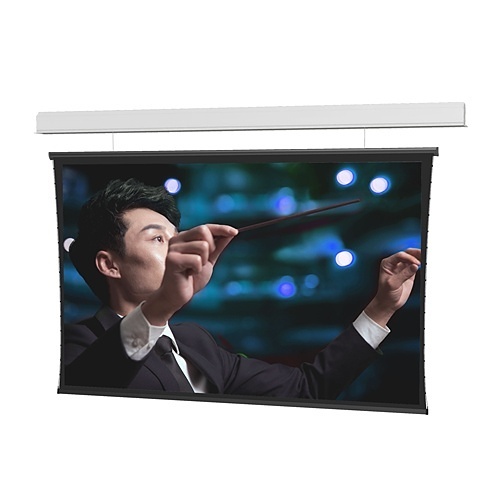

Wireline Projection Screen for Large Venues with High Ceilings
The Da-Lite Wireline Advantage is a premium large venue projection screen designed to deliver a clean, modern aesthetic in spaces with high ceilings. Instead of a traditional black drop, this screen uses thin steel cables up to 24 feet to lower the viewing surface to an optimal height. This innovative design creates a floating screen effect, ideal for auditoriums, houses of worship, and event spaces where visual impact and architectural integration are key.
Streamlined In-Ceiling Installation with Built-In Trim
The Wireline Advantage features a simple in-ceiling installation process with sliding brackets and built-in ceiling trim, eliminating the need for additional finishing work. The integrated trim conceals the rough opening, providing a polished look right out of the box. For non-recessed applications, the screen is also available without a trim flange, offering flexibility for a variety of installation environments.
Tensioned Viewing Surface for Flawless Image Quality
Equipped with the TruGuide Electric Screen Tensioning System and Smooth Roll Technology, the Wireline Advantage ensures a perfectly flat and smooth viewing surface. This tensioned screen design supports seamless surfaces and delivers superior image clarity, making it ideal for high-resolution projection. A standard black backing enhances brightness and contrast on front projection surfaces for a vivid viewing experience.
Smart Control Options for Seamless Operation
The Wireline Advantage projection screen comes standard with a radio frequency motor, handheld remote, and dry contact interface for easy operation. Optional accessories include a single-channel wall switch and RS-232 interface, allowing integration with third-party control systems. These features make it easy to manage screen deployment in professional AV environments.
TAA Compliant with High-Performance Screen Surfaces
This screen is TAA compliant, making it suitable for government and institutional installations. It’s available with the Parallax Stratos 1.0 surface, optimized for standard throw projectors (1.0:1 or greater), and designed to perform in ambient light environments. With its innovative cable drop system, tensioned surface, and flexible installation options, the Da-Lite Wireline Advantage is the ultimate solution for large-scale, high-ceiling projection needs.
Main Features

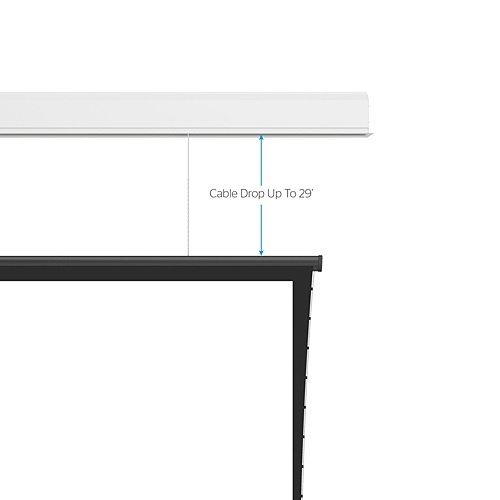

- Ceiling-recessed screen with cable drop system for high-ceiling rooms
- Thin steel cables replace black drop for a floating screen effect
- Up to 29 feet of cable for optimal viewing height in large venues
- TruGuide Tensioning System ensures a flat, wrinkle-free surface
- Built-in ceiling trim eliminates need for additional finishing
- Supports HD Progressive and Parallax Stratos 10 surfaces
- Standard RF motor with handheld remote and dry contact interface
- UL Plenum-rated case for safe in-ceiling installation
- Ideal for auditoriums, lecture halls, and large conference rooms
- Available in seamless sizes up to 226" diagonal
General Information
Name: Da-Lite 29223 Wireline Advantage Electric Projection Screen, Ceiling Mounted, Ceiling Trim Flange, 16:9 HDTV, HD Progressive 1.0, 120V, Trim Flange, 220" Screen, TAA Compliant
Category: Da-Lite by Legrand, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
UPC Code: 717068442948
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number HI-29223 Application/Usage Ceiling Recessed, Wall Brand Name Da-Lite by Legrand Country of Origin TW Manufacturer Legrand Group Manufacturer Part Number 29223 Product Line Wireline Advantage Product Name Wireline Advantage Projection Screen Product Type Projection Screen
Number of Gangs 1
Certifications TAA
Number of HDMI Ports 1 Number of RJ-45 Ports 1
Color Black Dimensions 108 x 192" Weight 1.36lb
Limited Warranty 5-Year
Environmental Certification GREENGUARD, GREENGUARD Gold Environmentally Friendly Yes Features Large Venue
