ICC ICCABR6EYL CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Yellow

Brand: ICC
ADI #:H2-CABR6EYL Model #: ICCABR6EYL  Name: ICC ICCABR6EYL CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
  • CAT6e CMR Riser 23AWG 100% Solid Pure Copper
  • Supports up to 100W Power over Ethernet (PoE++)
  • 600 MHz Frequency for reliable performance

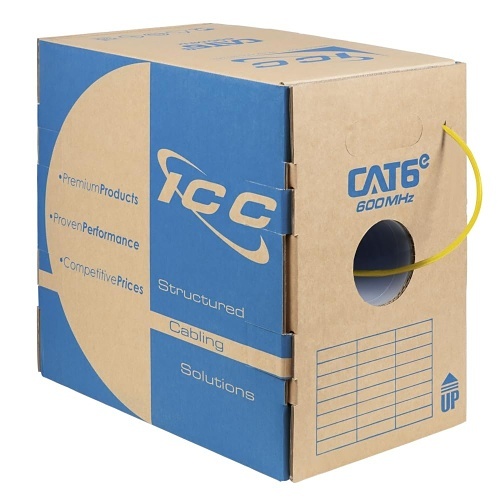

Image of H2-CABR6EYL

Product Overview

ICC's CAT6e UTP unshielded riser cable provides dependable transmission performance, accommodating 1Gb (Gigabit) Ethernet with a 600MHz bandwidth. This cable not only meets but surpasses TIA Alien Crosstalk requirements, holding ETL Verification to the TIA 568.2-D standard for dependable support of high-speed Ethernet applications. Engineered with precision, the cable features a spline that effectively isolates neighboring twisted pairs, reducing Alien Crosstalk interference. With its riser-rated design and an outer diameter of 0.23 inches, it adheres to safety regulations for vertical installations, making it an ideal choice for a variety of settings, including offices and schools. This cable aligns with the TIA-568-C.2 standard, guaranteeing reliable network connectivity while simplifying installation in riser spaces.

General Information

Name : ICC ICCABR6EYL CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Yellow , ICC
Category : Category 6 Network Cables
UPC Code : 633758032094
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : H2-CABR6EYL
Brand Name : ICC
Manufacturer Part Number : ICCABR6EYL
Product Type : Network Cable

Technical Information

American Wire Gauge : 23AWG
Cable Rating : Riser
Cable Type : Category 6e
Jacket Material : PVC
Jacket Type : CMR, Riser
Shielding : No
Solid or Stranded : Solid

Interfaces/Ports

Connector Type : RJ-45

Media & Performance

Data Transfer Rate : 1 Gbit/s

Physical Characteristics

Cable Length : 1000'
Color : Yellow
Package Type : Pull Box

Miscellaneous

Certifications & Standards : ETL, RoHS, TIA, UL
Country of Origin : TW
Features : Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
