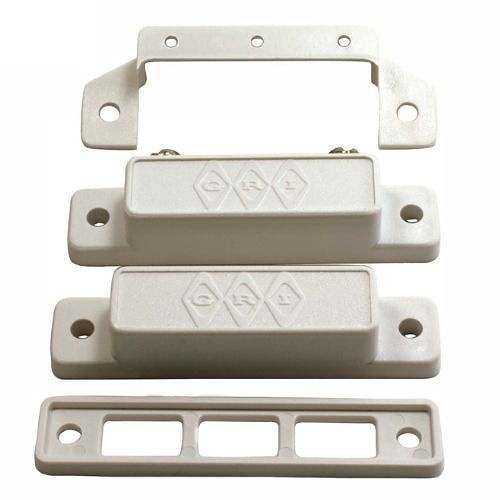

GRI 29A 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A and Side Mounted Screw Terminals, White
Brand: George Risk Industries
ADI #:GI-29AW
Model #: 29A-W
Name: GRI 29A 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A and Side Mounted Screw Terminals, White
- The GRI 29A-W is a white magnetic reed switch designed for surface mounting
- The unit is equipped with a closed loop system, top terminals; covers. The switch offers a standard gap of up to 1 and 5/8 on steel.
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
General Information
Name : GRI 29A 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A and Side Mounted Screw Terminals, White , George Risk IndustriesCategory : Magnetic Contacts
UPC Code : 697625006526
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-29AW
Brand Name : GRI
Connectivity Technology : Cable
Manufacturer : George Risk Industries
Manufacturer Part Number : 29A-W
Packaged Quantity : 10
Product Model : 29A
Product Name : 29A Magnetic Contact
Product Series : 29
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.O
Contact Resistance (Ohm) : 0.15
Standard Gap : 1" (25.40 mm)
Termination Style : Screw Terminal
Physical Characteristics
Color : White
Product Information
Contact Type : Closed Loop
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul><li>Surface mount magnetic contacts</li><li>Screw down flanges</li><li>Sermetically sealed</li><li>Plated contacts resist sticking or freezing</li><li>Closed loop</li></ul>
Country of Origin : United States
Package Contents : <ul><li>29A Magnetic Contact</li><li>Covers</li><li>Spacers</li><li>Mounting Hardware</li></ul>
