GRI 180-12-W 180 Series 3/4" Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated White

Brand: George Risk Industries
ADI #:GI-18012W Model #: 180-12-W  Name: GRI 180-12-W 180 Series 3/4" Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated White
  • Available in Closed Loop, Open Loop and SPDT
  • Switches or Magnets are Available Separately
  • Supervisory Loops Available

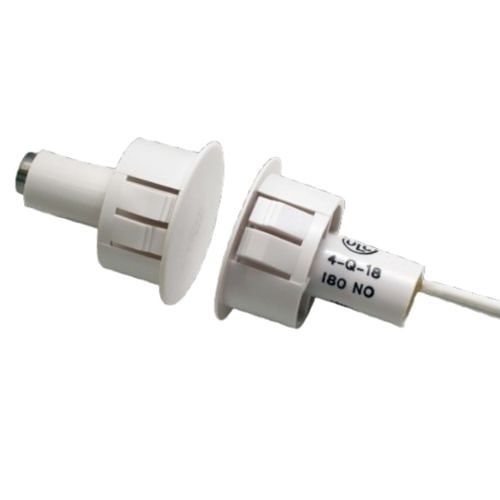

GRI 180-12-W Magnetic Contact

Product Overview

The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.

The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.

Main Features

  • Lifetime Warranty
  • Colors: White, Brown, Grey or Black
  • UL and ULC Approved
  • 180-12 & 184-12 UL 10C Fire Rated
  • Available in Closed Loop, Open Loop and SPDT
  • 3/4" and 1" Diameter Mounting
  • Standard 12" Leads or Terminals
  • Self-Locking
  • Solid, One Piece Design
  • 7/8" Diameter also Available - Call Factory
  • Switches or Magnets are Available Separately
  • Standard 1/2"+ Gap on Steel
  • Wide Gap 1"+ Gap on Steel
  • Supervisory Loops Available

General Information

Name : GRI 180-12-W 180 Series 3/4" Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated White , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625004256
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-18012W
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 180-12-W
Product Model : 180-12-W
Product Name : 180-12-W Magnetic Contact
Product Series : 180
Product Type : Magnetic Contact

Technical Information

Contact Configuration : N.O.
Contact Resistance (Ohm) : 0.15
Lead Gauge (mm) : 22
Lead Length (mm) : 304.8
Mounting Type : Steel Door
Recommended Use : Door
Standard Gap : 0.50" (12.70 mm)
Standard Gap (mm) : 12.7
Termination Style : Screw Terminal

Physical Characteristics

Color : White
Product Color : White
Product Material : Steel

Product Information

Contact Type : Closed Loop

Warranty

Limited Warranty : Lifetime

Miscellaneous

Country of Origin : United States
