2GIG TAKE100-345 Wireless Hardwire Takeover Module
2GIG-TAKE100-345 | GG-2GIGTAKE100345
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

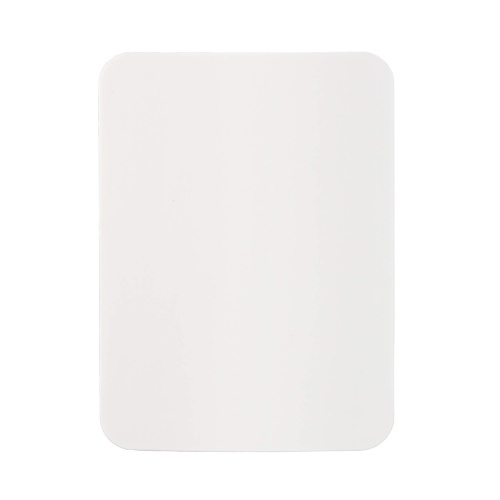

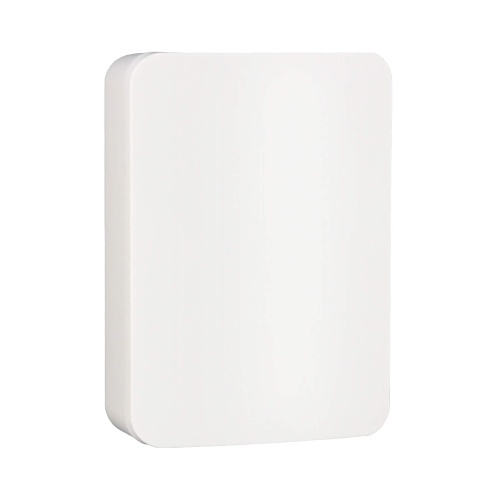

The 2GIG Wireless Hardwire Takeover Module (2GIG-TAKE100-345) provides installers with a simple and effective method for converting existing 12-volt prewired security systems to 2GIG wireless technology. Each module converts up to eight hardwired loops into 2GIG 345MHz wireless zones, streamlining the upgrade process. For larger installations requiring more than eight zones, additional modules may be added to expand system capabilities.
Designed for maximum flexibility, this takeover module can be powered by the existing alarm panel's supply and also use its backup battery, featuring an onboard charging circuit with a status LED. An auxiliary output provides up to 500 mA to power wired motion or glass break sensors directly. An internal on-board switch allows installers to easily select between standard non-encrypted operation or encrypted mode for enhanced security with compatible panels like the 2GIG EDGE.
Designed for maximum flexibility, this takeover module can be powered by the existing alarm panel's supply and also use its backup battery, featuring an onboard charging circuit with a status LED. An auxiliary output provides up to 500 mA to power wired motion or glass break sensors directly. An internal on-board switch allows installers to easily select between standard non-encrypted operation or encrypted mode for enhanced security with compatible panels like the 2GIG EDGE.
Main Features
General Information
Name:2GIG TAKE100-345 Wireless Hardwire Takeover Module
Category:2GIG, Intrusion, Alarm Control Panels & Keypads, Control Panel Modules, ADI Pro Rewards
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number GG-2GIGTAKE100345 Brand Name 2GIG Manufacturer Part Number 2GIG-TAKE100-345
