TP-Link FC111PB-20 10/100 Mbps WDM Media Converter with 1-Port PoE
FC111PB-20
|FP-FC111PB20
Shop All TP-Link
TP-Link FC111PB-20 10/100 Mbps WDM Media Converter with 1-Port PoE
FC111PB-20 | FP-FC111PB20
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

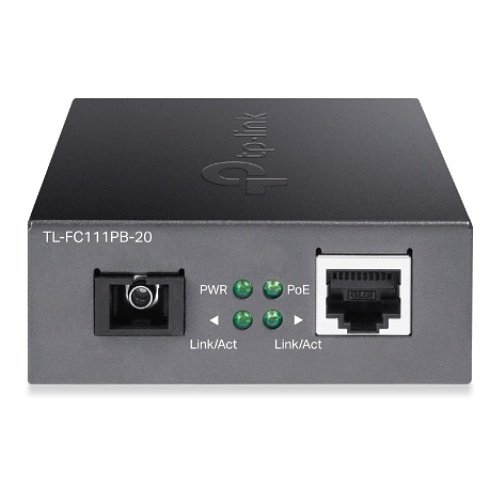

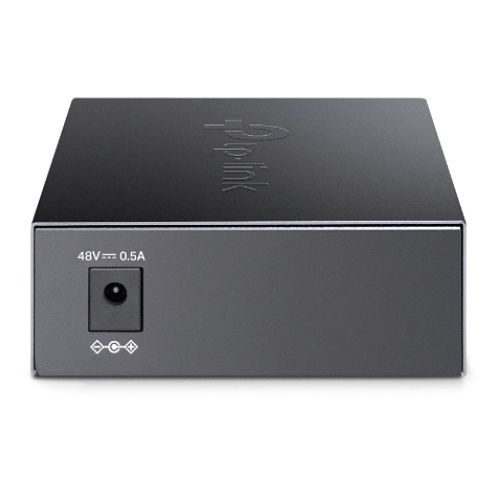

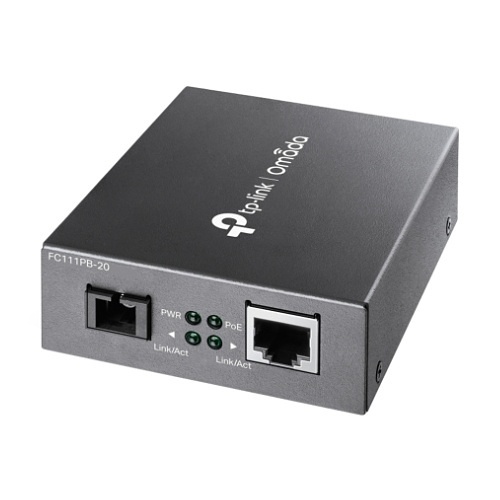

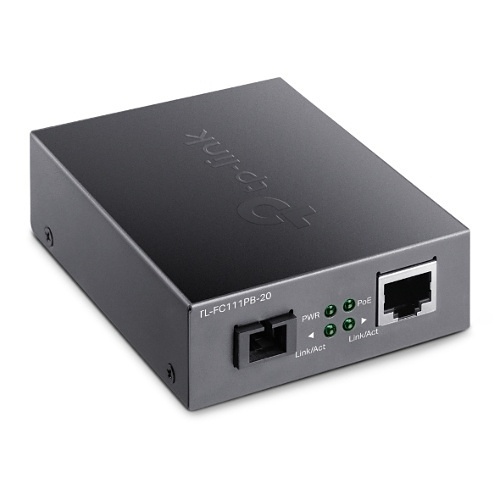

TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100Mbps PoE RJ45 port and 1× 100Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network. TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.
Specifications
ADI Part Number FP-FC111PB20 Brand Name TP-Link Manufacturer Part Number FC111PB-20
