Product Overview
The B520 Auxiliary Power Supply Module is a fully supervised, addressable SDI2 bus device that provides an integrated auxiliary power supply solution for Bosch control panels. The B520 Auxiliary Power Supply Module is an auxiliary power supply expansion device that connects to compatible control panels through the SDI2 bus. This module is supervised and communicates back to the control panel all status changes. Industrial, commercial, and institutional facilities are typical installations for the B520 module. The B520 rotary switches allow for ease of use in device addressing. The SDI2 Out terminals provide auxiliary power for SDI2 expansion devices such as keypads. The AUX PWR terminals provides added auxiliary power capabilities for additional devices such as PIR's.
Main Features
- Provides up to 2A of 12V standby current for Fire or Burglar Applications (4A of Burglary alarm current)
- Supervises up to two 12v 7-18Ah batteries independently for up to 36AH of capacity
- Provides up to 80 hours of standby time
- Uses the Bosch standard TR1850 plug-in transformer
General Information

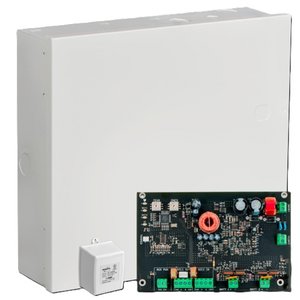

Name: Bosch B520-B-CA with TR1850-CA And B10
Category: Bosch, Pro AV, Commercial Audio, Pro Microphones, Headphones & Headsets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number DS-B520BCA Brand Name Bosch Manufacturer Part Number B520-B-CA Product Name Bosch B520-CA Power Supply Product Type Power Supply
Input Voltage 18V AC
Compatibility B10 Enclosure, TR1850 Transformer Environmental Certification FCC, UL Environmentally Friendly Yes
