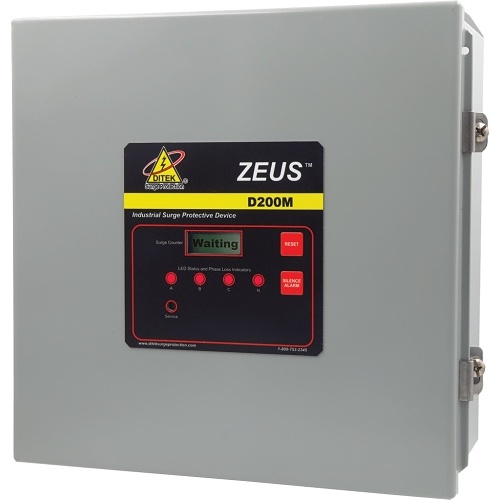

DITEK D200M-2403D D200M Series Modular Surge Protective Device, 200kA/Phase
D200M-2403D
|DK-D200M2403
Shop All DITEK
DITEK D200M-2403D D200M Series Modular Surge Protective Device, 200kA/Phase
D200M-2403D | DK-D200M2403
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
DITEK's D200M industrial surge protectors are designed to meet new construction bid/spec requirements for facility-wide protection. Each model provides a high surge current rating to ensure long service life, and includes service assurance features to support proactive operational management. The D200M-2403D protects 240VAC three phase delta panels.
- 200,000 Amps/phase surge current rating, 100,000 Amps/mode, ensures long service life
- Visual LED end of life and phase loss indicators
- Audible alarm with silence button
- Form C dry contacts for remote monitoring
- EMI/RFI noise filtering
- Replaceable SPD module
Main Features
General Information
Name: DITEK D200M-2403D D200M Series Modular Surge Protective Device, 200kA/Phase
Category: DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 782980520623
Country of Origin: Mexico.Country of origin is subject to change.
Specifications
ADI Part Number DK-D200M2403 Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number D200M-2403D Product Line ZEUS Product Name ZEUS D200M-2403D Surge Suppressor/Protector Product Series D200M Product Type Surge Suppressor/Protector
TAA Compliant Yes
Receptacles Hardwired
Height 6.29" Width 13"
Input Voltage 230V AC
Limited Warranty 10-Year
Country of Origin MX Environmental Certification RoHS Environmentally Friendly Yes
