Camden Door Controls
GREEN PNEUM SWTCH PUSH TO EXIT
CM-4085GPTE | CM-4085GPTE
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

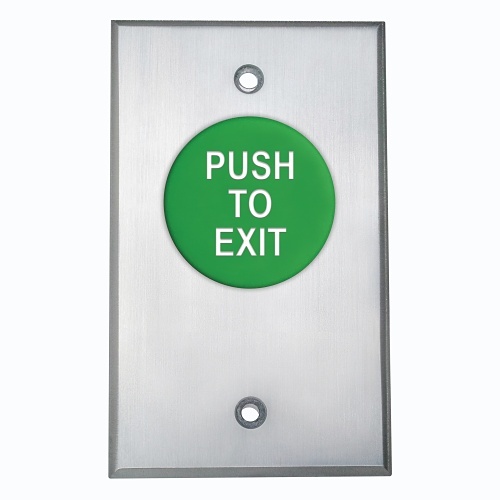

The CM-4085GPTE from Camden Door Controls is a spring return, DPST 1-60 sec pneumatic timer, green button, 'PUSH TO ExIT' engraved on button. Camden Door Controls 4000 Series of push switches are heavy duty pushbuttons, specially designed and manufactured to meet the stringent demands of exit controls. buttons are available in either green, red, or blue, 1 0.6" diameter. They are supplied with a 0.2" thick brushed aluminum plate in 1 0.7" or 2 0.7" widths. Optional duranodic finish (US 40) is also available.No set screws are required, due to the bayonet interlocking of the modular assembly. buttons are free spinning, for additional protection against vandalism.The switches are Ul/CSA approved, rated at 6A at 30V DC. The design of the Camden Push button is modular, so that the contact block switches can be stacked to control up to six distinct functions simultaneously. They can be configured for either spring return (momentary), push / pull (maintained), or push/turn to release (maintained) operation. Optional 1-60 second pneumatic timer. Pneumatic timer features 6A at 30V DC form Z (N/O and N/C) contacts.
Principales caractéristiques
Renseignements généraux
Nom:Camden CM-4085GPTE CM-4000 Series 1-5/8" Pushbutton, Spring Return, DPST 1-60 sec Pneumatic Timer, 'PUSH TO EXIT' Engraved Green Button, Aluminum Faceplate
Category:Camden Door Controls, Access Control, Egress Devices & Alarms, Door Release Buttons
UPC Code:670454196460
Country of Origin:Canada. Country of origin is subject to change.
Spécifications
ADI Numéro du produit CM-4085GPTE Code fabricant CM-4085GPTE Marque Camden Door Controls
