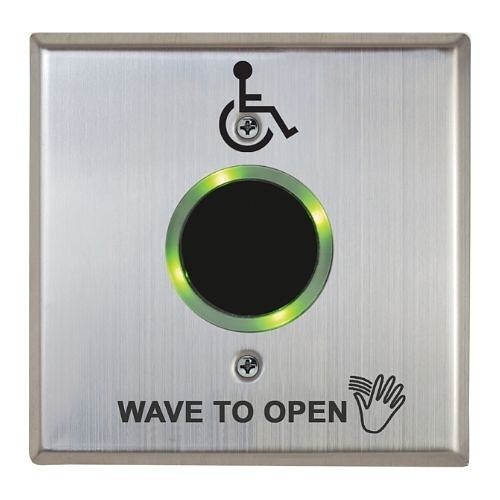

Camden CM-332/42SW-SGLR Wired Touchless Switch with Built-In Door Control, 2-Relay, Hand Icon, 'Wave to Open' Text, Wheelchair Symbol, Double Gang Stainless Steel Faceplate with LED Light Ring
CM-332/42SW-SGLR
|CM-33242SWSG
Shop All Camden Door Controls
Camden CM-332/42SW-SGLR Wired Touchless Switch with Built-In Door Control, 2-Relay, Hand Icon, 'Wave to Open' Text, Wheelchair Symbol, Double Gang Stainless Steel Faceplate with LED Light Ring
CM-332/42SW-SGLR | CM-33242SWSG
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
CM-332 touchless switches provide 'state of the art' door activation and control while eliminating the spread of germs.
Main Features
- 2 Relays with bi-directional door sequencing avoids the need to purchase additional components
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included
- Advanced active infra-red technology with fast response
- Adjustable operating range up to 28", refer to model specification
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
General Information
Name: Camden CM-332/42SW-SGLR Wired Touchless Switch with Built-In Door Control, 2-Relay, Hand Icon, 'Wave to Open' Text, Wheelchair Symbol, Double Gang Stainless Steel Faceplate with LED Light Ring
Category: Camden Door Controls, Access Control, Egress Devices & Alarms, Request to Exit Devices
UPC Code: 670454186669
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number CM-33242SWSG Manufacturer Part Number CM-332/42SW-SGLR Product Series CM-331/332/333/336/324/325 Product Type SureWave Touchless Switches
Operating Range 1"-28"
Input Voltage 12V AC, 12V DC, 24V AC, 24V DC
ADI Part Number Replaces CM-33242WSGL Model Number Replaces CM-332/42W-SGLR
Limited Warranty 3-Year
