Product Overview

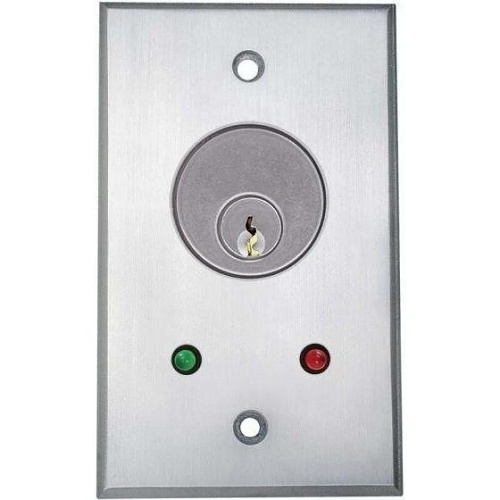

Camden vandal resistant key switches feature a .25" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1.25" mortise cylinder and cam (sold separately).
Main Features
General Information
Name:Camden CM-1182-7224-60KA Key Switch, 2-Pole Double-Throw DPDT, Momentary, MRTS, CY
Category:Camden Door Controls, Access Control, Locking Devices, Key Switches
UPC Code:670454199935
Country of Origin:Canada. Country of origin is subject to change.
Specifications
ADI Part Number CM-118272246 Brand Name Camden Door Controls Manufacturer Part Number CM-1182-7224-60KA
Maximum Operating Temperature 85°F Minimum Operating Temperature 32°F
Input Voltage 30V DC Power Source DC
Contact Type DPDT
Features 1 piece die cast construction, Accepts standard mortise cylinders (1" - 1-1/4"), Cylinder sits flush to faceplate, Heat shrink protective sleeve over contacts, Heavy duty 1/4" thick aluminum plate, Indoor or outdoor flush applications, Locators prevent cylinder from spinning, Mullion style - only 1-3/4" wide, No set screw required, Provision for 2 internal switches, Tamper proof screws and driver provided
