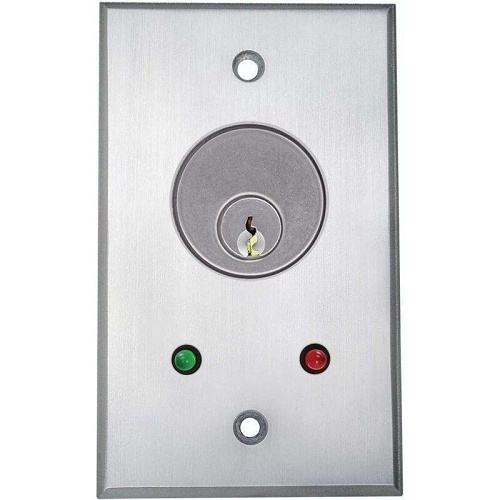

Camden CM-1100-7012 CM-1100 Series Key Switch Mounted on Faceplate, SPST Momentary N/O, Red 12V LED
CM-1100-7012|CM-11007012
Camden CM-1100-7012 CM-1100 Series Key Switch Mounted on Faceplate, SPST Momentary N/O, Red 12V LED
CM-1100-7012|CM-11007012
Camden Door Controls
Camden CM-1100-7012 CM-1100 Series Key Switch Mounted on Faceplate, SPST Momentary N/O, Red 12V LED
CM-1100-7012 | CM-11007012
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Camden Door Controls, CM-1100 and CM-2000 Series flush mount key switches meet the stringent demands of key switch controls. They are designed for use with standard 1", 1.12", or 1 .25" mortise cylinders. Fabricated from .25" thick aluminum, into a one piece die cast construction, with unique Camden Manufacturing features.
Main Features
General Information
Name:Camden CM-1100-7012 CM-1100 Series Key Switch Mounted on Faceplate, SPST Momentary N/O, Red 12V LED
Category:Camden Door Controls, Access Control, Locking Devices, Key Switches
UPC Code:670454155030
Country of Origin:Canada. Country of origin is subject to change.
Specifications
ADI Part Number CM-11007012 Brand Name Camden Door Controls Manufacturer Part Number CM-1100-7012
Maximum Operating Temperature 85°F Minimum Operating Temperature 32°F
Input Voltage 30V DC Power Source DC
Contact Type SPST
Features 1 piece die cast construction, Accepts standard mortise cylinders (1" - 1-1/4"), Cylinder sits flush to faceplate, Heat shrink protective sleeve over contacts, Heavy duty 1/4" thick aluminum plate, Indoor or outdoor flush applications, Locators prevent cylinder from spinning, Mullion style - only 1-3/4" wide, No set screw required, Provision for 2 internal switches, Tamper proof screws and driver provided
