Product Overview

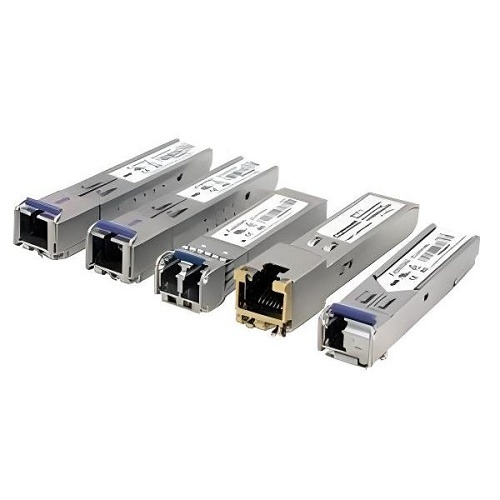

The ComNet selection of MSA Compliant Small Form-Factor Pluggable (SFP) modules allows for an optical or electrical interface when using a ComNet managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with copper media, multimode optical fiber, or single mode optical fiber. The optical fiber SFP modules are available in Fast Ethernet one and two fiber versions and Gigabit Ethernet one and two fiber versions. They also are available with LC or SC optical connectors. The ComNet SFP modules offer different wavelengths and optical power budget to allow distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments. A ComNet SFP interface is required for use with all ComNet SFP configurable products to qualify for the ComNet Lifetime Warranty
Main Features
- FEATURES
- Interchangeable SFP for fiber type, distance and connector
- IEEE 802.3 compliant
- Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA)
- Operating temperature: -40° C to +75° C
- Storage temperature: -40° C to +85° C
- No in-field adjustments required
- Lifetime Warranty
General Information
Specifications
ADI Part Number C4-SFPLXC Application/Usage Data Networking, Optical Network Brand Name ComNet Country of Origin CN Manufacturer ACRE Manufacturer Part Number SFPLXC Number of Cameras Included 4 Product Name SFP-LX/C Module Product Type SFP-LX/C
Fiber Optic Cable Standard 1310 nm Fiber Optic Mode Single-mode Maximum Distance 393700.79' Media Type Supported Optical Fiber Number of Channels 4 Number of IR LEDs 24
Connector Type LC/UPC Interfaces/Ports Details 1 x LC 1000Base-X Network Number of VGA Outputs 1
Ethernet Technology 1 Gbps (Gigabit Ethernet)
Form Factor Plug-in Module
Limited Warranty Lifetime
Compatibility MSA Compliant Environmental Certification RoHS Environmentally Friendly Yes
