ComNet CNMC4SFP Quad Media Converter, 100/1000FX Multirate, 4 SFP Ports, 4 RJ-45 Copper Ports, SFP Required

CNMC4SFP | C4-CNMC4SFP

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

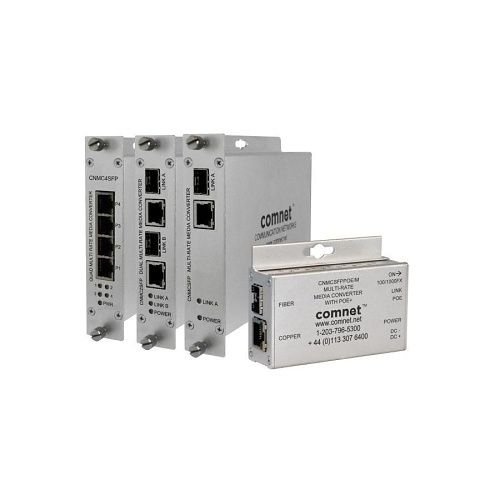

The ComNet CNMCSFP electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts this to a 100 or 1000 Mbps optical output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. “Auto-Negotiating” is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP† optical module. A PoE model, the CNMCSFPPOE/M meets the IEE802.3at standard and provides 30 watts of PoE+ power. The series consists of a small-size single channel model, CNMCSFP/M; a ComFit standard size, single-channel model, CNMCSFP; a dual channel model, CNMC2SFP; and a quad channel model, the CNMC4SFP.

Main Features

  • 10/100/1000 BASE-TX port supports auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation
  • Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
  • Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40º to +75ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
  • Voltage transient protection on all power and signal input/ output line provide protection from voltage surges and other transient events
  • Mini-package size of the CNMCSFP/M allows the unit to be installed in those locations where space is at a premium
  • Bi-color LED status indicators confirm operating status
  • Hot-swappable rack modules
  • Available in small-size, ComFit interchangeable stand alone or rack unit single and dual models

    • General Information

    Name:ComNet CNMC4SFP Quad Media Converter, 100/1000FX Multirate, 4 SFP Ports, 4 RJ-45 Copper Ports, SFP Required
    Category:ComNet, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:845770015157
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
