AV Pro Edge AC-BTSSF-USB3-HUB-10 USB 3.1 Extension Cable with Hub, 10m

AC-BTSSF-USB3-HUB-10|8A-USB3HUB10

AV Pro Edge AC-BTSSF-USB3-HUB-10 USB 3.1 Extension Cable with Hub, 10m

AC-BTSSF-USB3-HUB-10|8A-USB3HUB10

Se connecter prix revendeur

Devenir client ADI
AV Pro Edge

AV Pro Edge AC-BTSSF-USB3-HUB-10 USB 3.1 Extension Cable with Hub, 10m

AC-BTSSF-USB3-HUB-10 | 8A-USB3HUB10

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

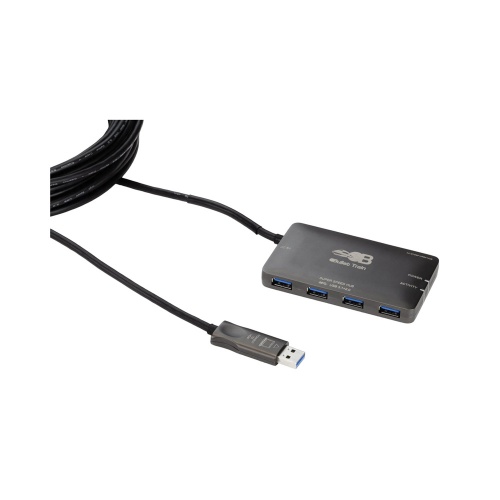

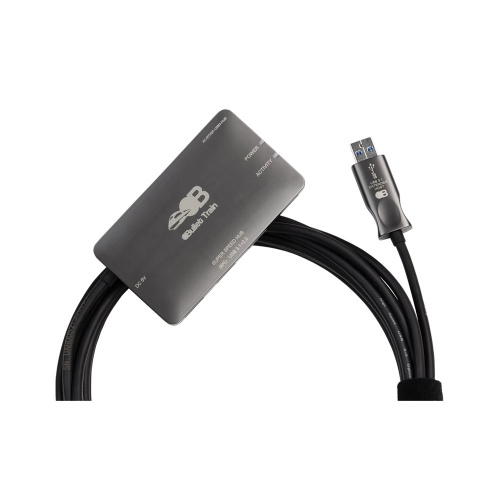

The Bullet Train USB 3.1 Extension Cable with Hub is designed for extending and managing multiple USB connections, specifically for video conferencing applications. It features four active USB-A female ports, supporting USB 3.1 Gen 1, USB 3.0, and 2.0, and can connect four USB 4K cameras via one USB connection up to 40 meters away. Constructed with Cleerline SSF fiber optics and reinforced with Kevlar, the cable has a 5 mm bend radius and meets CL2/CL3 in-wall rating standards. The hub operates as a USB 2.0 device without external power or as a full 4-port USB 3.1 hub with power. Compliance includes UL 444/CSA C22.2 No. 214, CE, FCC, ISF certifications, and RoHS compliance. Applications span education, corporate, retail, hospitality, and luxury homes.

Principales caractéristiques

  • Includes four active USB-A female ports
  • Supports up to 40 meter extension
  • USB 3.1 Gen 1 support
  • CL2/CL3 in-wall rating
  • Built with Cleerline SSF fiber optics
  • Bend radius is 5 mm
  • Kevlar reinforcement for strong pull capacity
  • Supports UVC devices for video and UAC devices for audio
  • UL 444/CSA C22.2 No. 214, CE Certified, FCC, ISF certified, RoHS Compliant
  • Compliance with Prop65 Warning for cancer and reproductive harm
  • Renseignements généraux

    Nom:AV Pro Edge AC-BTSSF-USB3-HUB-10 USB 3.1 Extension Cable with Hub, 10m
    Category:AV Pro Edge, Pro AV, Commercial Connector Cables, Pro USB Cables
    UPC Code:850015330759
    Country of Origin:. Country of origin is subject to change.
