AVPro Edge MU-SIX-PAIR-8K-M 8K SIX Series 40Gbps HDMI Signal Testing Set
MU-SIX-PAIR-8K-M
|8A-MUSIXPAKM
Shop All AVPro Edge
AVPro Edge MU-SIX-PAIR-8K-M 8K SIX Series 40Gbps HDMI Signal Testing Set
MU-SIX-PAIR-8K-M | 8A-MUSIXPAKM
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

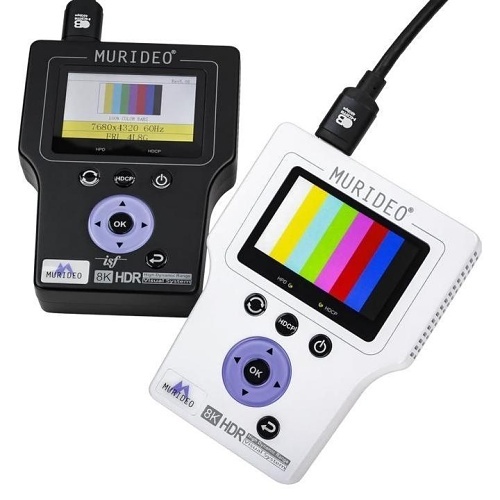

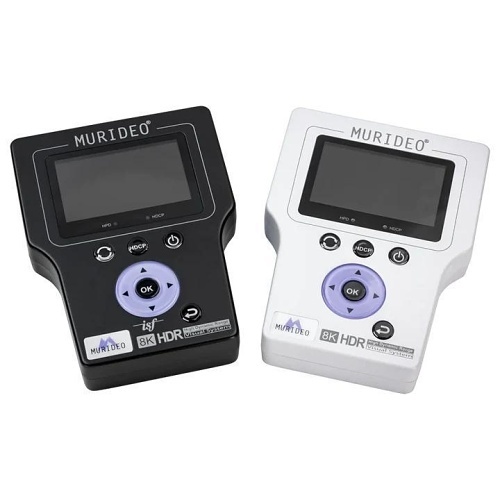

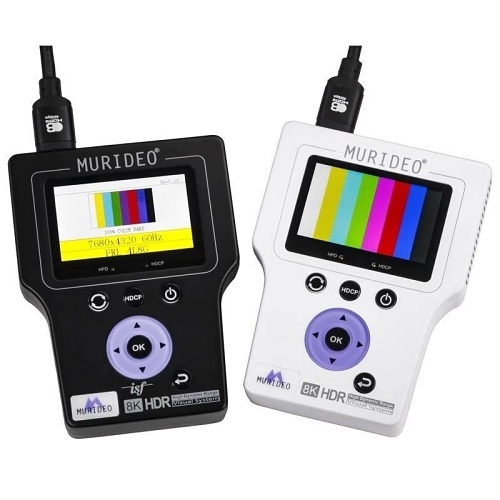

The Murideo 40 Gbps generator and analyzer testing kit is designed for custom and commercial integrators to ensure optimal HDMI system performance. Supporting HDMI 2.1, it delivers 8K resolution at 60Hz with 4:2:0 10-bit color depth and includes fixed rate link (FRL) capabilities plus extensive color space options such as full range RGB, SMPTE RGB, and YC444/422/420. The pair provides advanced features like HDCP selection, HDR support, BT.2020 wide color gamut, and multiple EDID functionalities, supported by USB control and free PC software. Certified by ISF Labs and DPL Labs, these devices enable point-to-point testing with a generator and analyzer for verifying bandwidth, timing, HDR metadata, and more.
Main Features
- Supports 40 Gbps bandwidth for generator and analyzer testing
- Includes HDMI 2.1 support
- Supports up to 8K at 60 Hz 4:2:0 10-bit maximum resolution
- Supports Fixed Rate Link (FRL)
- Color space selectable with full range RGB (0-255) and SMPTE RGB (16-235)
- Supports YC444, 422, 420 color formats (16-235)
- Auto detects EDID for display preferred format
- Supports high bit depth: 8, 10, 12, and 16 bit per pixel
- HDR (High Dynamic Range) support included
- Supports BT.2020 wide color gamut (WCG)
General Information
Name: AVPro Edge MU-SIX-PAIR-8K-M 8K SIX Series 40Gbps HDMI Signal Testing Set
Category: Tools & Hardware, Electric Power Testing Tools, PoE Testers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 8A-MUSIXPAKM Brand Name AVPro Edge Manufacturer Part Number MU-SIX-PAIR-8K-M
HDMI Yes
Weight 0.80lb
