AV Pro Edge AC-EXO-X-KIT 8K HDMI Extender via Fiber Optic Kit, 40Gbps

AC-EXO-X-KIT|8A-ACEXOX
Shop all AV Pro Edge

AV Pro Edge AC-EXO-X-KIT 8K HDMI Extender via Fiber Optic Kit, 40Gbps

AC-EXO-X-KIT|8A-ACEXOX

Sign In for Dealer Pricing

Become an ADI Customer
Image of 8A-ACEXOX
AV Pro Edge

AV Pro Edge AC-EXO-X-KIT 8K HDMI Extender via Fiber Optic Kit, 40Gbps

AC-EXO-X-KIT | 8A-ACEXOX

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

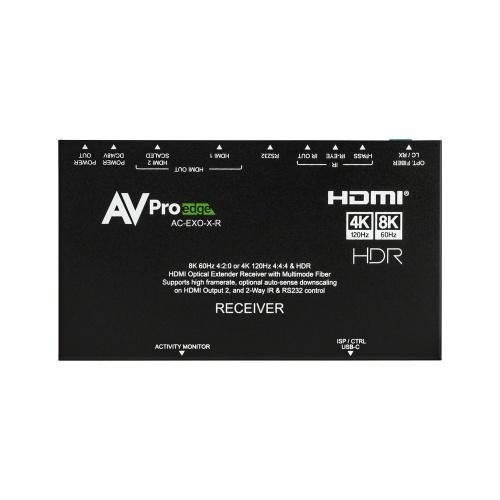

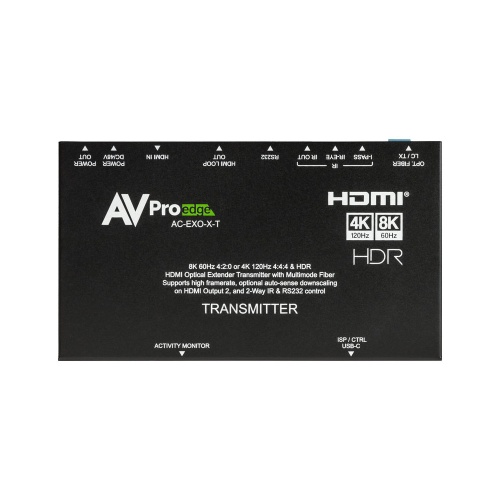

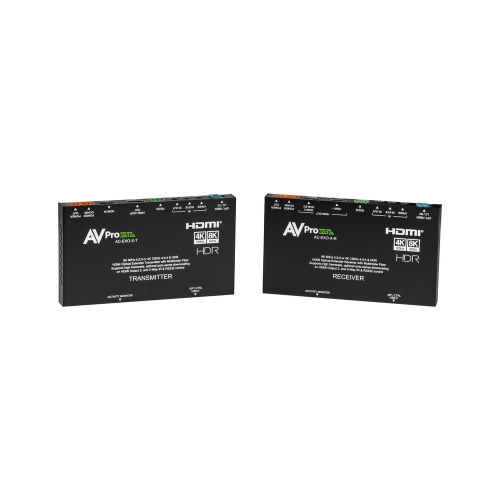

The AC-EXO-KIT by AVPro Edge is an HDMI 2.1 extender designed for ultra-high-definition 8K signal transmission over long distances using multi-mode fiber optic cabling. It supports OM2, OM3, and OM4 fiber classifications, enabling 8K/60Hz 4:2:0 signal transmission up to 300 meters on OM4 fiber. This kit features a proprietary beam-focusing lens assembly and a custom link training algorithm to maintain original signal bandwidth and image fidelity with near-zero latency under 8 microseconds. The receiver includes dual HDMI outputs with selectable downscaling options, comprehensive EDID management for mixed resolution systems, and supports HDR10, Dolby Vision, HDR10+, HLG, and HDCP 2.3. Control signal management via bidirectional IR and RS-232 simplifies installation wiring, making the AC-EXO-KIT suitable for demanding, high-fidelity AV installations.

Main Features

  • Supports HDMI 2.1a with Auto Low Latency, Variable Refresh Rate, Quick Frame Transport, and Source
  • Delivers 8K/60 4:2:0 signals up to 300 meters over OM4 multi-mode fiber
  • Compatible with OM2 (40m), OM3 (200m), and OM4 (300m) multi-mode fiber
  • High bandwidth 40 Gbps for 8K and High Frame Rate 4K/120fps signals
  • Dual HDMI outputs on receiver with selectable downscaling: 8K to 4K, 8K to 1080p, 4K to 1080p
  • Comprehensive EDID management including EDID copy for reliable HDCP repeatability
  • Bidirectional IR & RS-232 control signal management consolidates wiring
  • Proprietary beam-focusing lens assembly minimizes signal attenuation and light scatter
  • Near-zero latency under 8 microseconds, visually imperceptible
  • Includes HDCP 2.3 support and HDR10, Dolby Vision, HDR10+, HLG formats support

    • General Information

    Name:AV Pro Edge AC-EXO-X-KIT 8K HDMI Extender via Fiber Optic Kit, 40Gbps
    Category:AV Pro Edge, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
    UPC Code:810108230090
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
