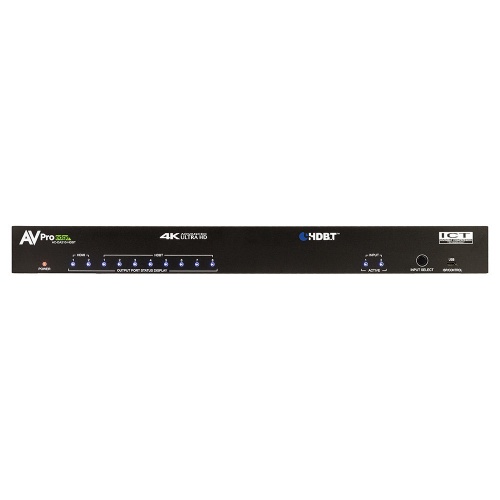

Image of 8A-ACDA21DBT
Shop all AV Pro Edge

AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps

AC-DA210-HDBT|8A-ACDA21DBT
Shop all AV Pro Edge

AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps

AC-DA210-HDBT|8A-ACDA21DBT

Sign In for Dealer Pricing

Become an ADI Customer

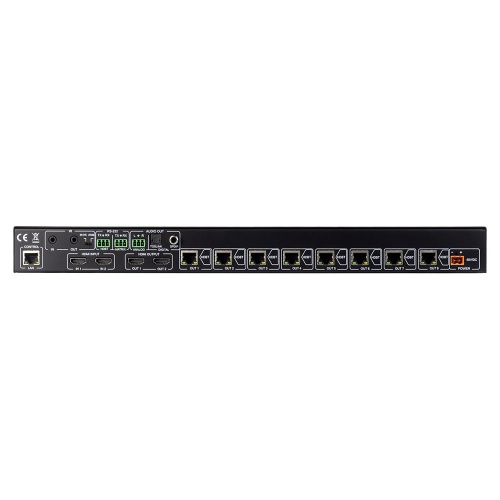

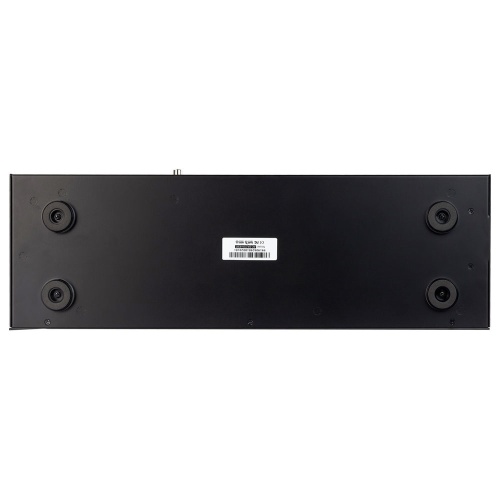

Image of 8A-ACDA21DBT
AV Pro Edge

AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps

AC-DA210-HDBT | 8A-ACDA21DBT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-DA210-HDBT is an 18Gbps 4K HDMI Signal Distribution Amplifier designed for massive 4K content distribution across multiple displays, featuring two HDMI inputs, eight HDBaseT outputs, and two HDMI outputs. It supports full 4K60 4:4:4 resolution with 18Gbps uncompressed bandwidth, HDR formats including Dolby Vision and HDR10+, and HDCP 2.2 compliance. This unit facilitates long-distance transmission up to 70 meters at 4K and 100 meters at 1080p using HDBaseT technology with proprietary ICT compression. The 1U rack mount chassis offers maximum airflow for reliable cooling, while integrated RS-232 and IR control allow remote management of connected endpoints. Compatibility with ultra-slim PoH-powered receivers simplifies installation, making it ideal for retail, hospitality, and public space digital signage applications.

Main Features

  • 18Gbps 4K60 4:4:4 HDBaseT Distribution Amplifier with two HDMI inputs
  • Eight HDBaseT outputs and two HDMI outputs for massive distribution
  • Supports cascading to distribute content to hundreds of displays
  • Audio de-embedding via 2CH Phoenix, SPDIF, and Toslink Optical outputs
  • 19 inch 1U rack mount chassis with maximum air flow design
  • Compatible with AC-EX70-444-RNE Ultra Slim HDBaseT receivers with PoH
  • Supports HDMI 2.0, HDCP 2.2, and full HDR (HDR 10 & 12 Bit)
  • Dolby Vision, HDR10+, and HLG support
  • Web-based control GUI with advanced EDID management
  • Extend signal up to 70m at 4K or 100m at 1080p

    • General Information

    Name:AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps
    Category:AV Pro Edge, Pro AV, Commercial Audio, Pro Amplifiers
    UPC Code:859762007112
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Additional Resources
