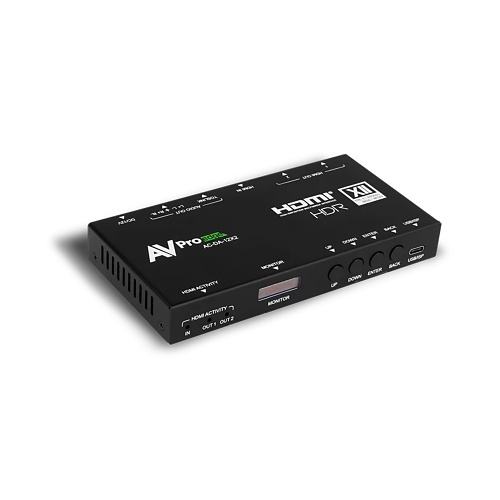

Image of 8A-ACDA12X2
Shop all AV Pro Edge

AV Pro Edge AC-DA-12X2 1 x 2 HDMI Distribution Amplifier, 48Gbps

AC-DA-12X2|8A-ACDA12X2
Shop all AV Pro Edge

AV Pro Edge AC-DA-12X2 1 x 2 HDMI Distribution Amplifier, 48Gbps

AC-DA-12X2|8A-ACDA12X2

Sign In for Dealer Pricing

Become an ADI Customer
Image of 8A-ACDA12X2
AV Pro Edge

AV Pro Edge AC-DA-12X2 1 x 2 HDMI Distribution Amplifier, 48Gbps

AC-DA-12X2 | 8A-ACDA12X2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-DA-12X2 from AVPro Edge is a 48 Gbps HDMI 2.1b distribution amplifier designed to split a single HDMI input into two outputs, supporting resolutions up to 8K/60 fps. It features signal downscaling capabilities, allowing one output to maintain full 8K while the other can downgrade to 4K or 1080p for legacy displays and projectors. Additional features include extensive EDID management with 20 pre-configured slots, extracted multi-channel digital audio output, and fixed FRL rate settings for compatibility with first-generation displays. The unit also supports gaming-focused HDMI 2.1b functionalities like Quick Media Switching and Variable Refresh Rate for smooth gameplay. Installation and control are facilitated by a front panel USB-C port and included mounting brackets.

Main Features

  • 48 Gbps bandwidth supporting 8K FLR 6 and select 10K FRL 3, 4, 5 resolutions
  • One HDMI input to two HDMI outputs
  • Downscaling enabled on each HDMI output for 8K to 4K/1080p and 4K to 1080p
  • Extracted multi-channel digital audio up to 7.1 via TOSLINK
  • 2-channel analog audio output via 5-pin balanced terminal block
  • Fixed FRL rate setting via front panel or device API
  • Extended EDID management with 20 pre-configured slots and 3 user slots
  • Supports HF-EEODB for extended EDID data
  • Gaming-focused HDMI 2.1b features like VRR and Quick Media Switching
  • USB-C port for command setup control

    • General Information

    Name:AV Pro Edge AC-DA-12X2 1 x 2 HDMI Distribution Amplifier, 48Gbps
    Category:AV Pro Edge, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
    UPC Code:810108230830
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
