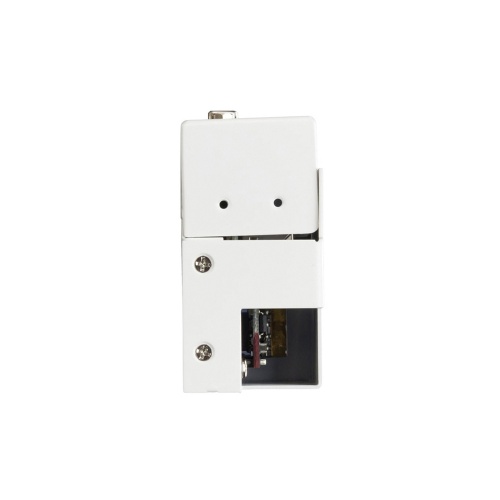

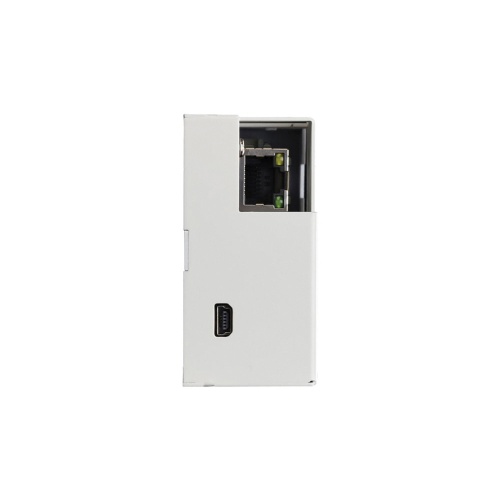

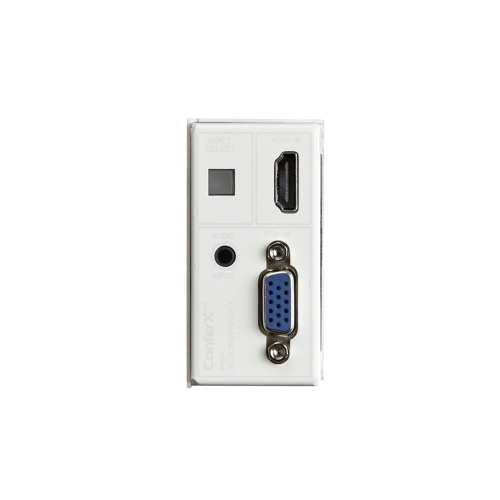

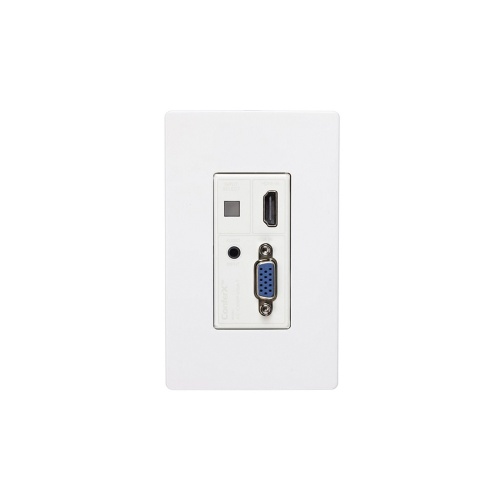

AVPro Edge AC-CXWP-VGA-T Single-Gang VGA/HDMI Wall Plate Transmitter Via HDBaseT
AC-CXWP-VGA-T
|8A-ACCXWPVGA
Shop All AVPro Edge
AVPro Edge AC-CXWP-VGA-T Single-Gang VGA/HDMI Wall Plate Transmitter Via HDBaseT
AC-CXWP-VGA-T | 8A-ACCXWPVGA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ConferX AC-CXWP-VGA-T is a single gang HDBaseT wall plate transmitter designed for professional audio-video installations in schools, offices, meeting rooms, and huddle rooms. It supports HDMI 2.0, including 4K30 4:4:4, 4K60 4:2:0, HDR 4:2:2 12 bit, and VGA resolutions up to 1080p. This unit transmits signals over Cat6A cable up to 100 meters for 1080p and 70 meters for 4K, powered by devices like the AC-EX70-444-RNE-P or other PoE sources without needing local power. Its rugged, low-heat chassis fits any standard US single gang wall plate or mud ring and includes ESD protection, HDCP 2.2 support, CEC pass-through, and compatibility with HDBaseT displays, projectors, and AVRs.
Main Features
- Supports HDMI 2.0 (a/b)
- 4K30 4:4:4 and 4K60 4:2:0 HDMI support
- HDR 4:2:2 12 bit support
- DCI 2K, 1080p, 1920x1080x60 VGA support
- Transmits 1080p up to 100 m and 4K up to 70 m over Cat6A
- CEC pass-through
- No local power required, powered by AC-EX70-444-RNE-P or POE devices
- Single gang design fits standard USA single gang boxes and mud rings
- Rugged, low heat, long-life chassis
- Plug and play auto input sensing
General Information
Name: AVPro Edge AC-CXWP-VGA-T Single-Gang VGA/HDMI Wall Plate Transmitter Via HDBaseT
Category: Pro AV, Commercial Audio, Pro Wall Plates
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 8A-ACCXWPVGA Brand Name AVPro Edge Manufacturer Part Number AC-CXWP-VGA-T
Weight 0.40lb
