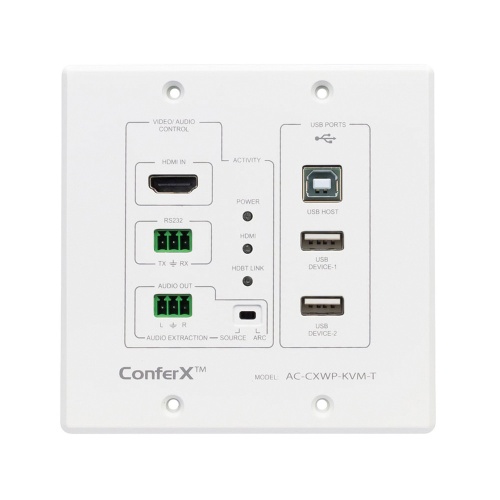

Image of 8A-ACCXVMKIT
Shop all AV Pro Edge

AV Pro Edge AC-CXWP-KVM-KIT HDMI / Bi-Directional USB Wall Plate Kit, 18Gbps

AC-CXWP-KVM-KIT|8A-ACCXVMKIT
Shop all AV Pro Edge

AV Pro Edge AC-CXWP-KVM-KIT HDMI / Bi-Directional USB Wall Plate Kit, 18Gbps

AC-CXWP-KVM-KIT|8A-ACCXVMKIT

Sign In for Dealer Pricing

Become an ADI Customer

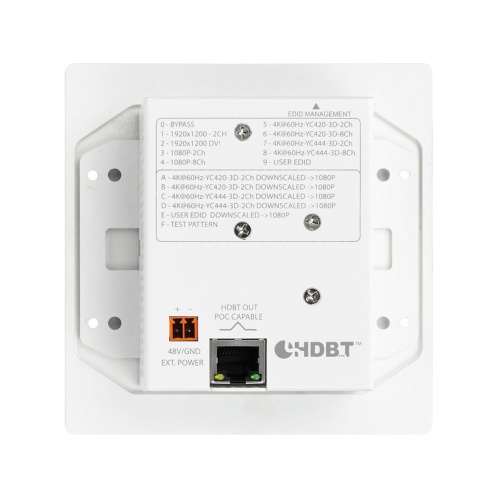

Image of 8A-ACCXVMKIT
AV Pro Edge

AV Pro Edge AC-CXWP-KVM-KIT HDMI / Bi-Directional USB Wall Plate Kit, 18Gbps

AC-CXWP-KVM-KIT | 8A-ACCXVMKIT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps HDBaseT wall plate extender kit designed for transmitting HDMI and USB 2.0 signals over single CAT UTP/STP cables. It supports HDMI 2.0 (a/b) and bi-directional USB 2.0 up to 250 Mbps, providing a sleek wall plate finish suitable for classrooms and conference rooms. The device enables full HDR support, 40 meters 4K transmission at up to 4K60 4:4:4 HDR, including HDR10+ and HLG, with 4K to 1080p downscaling for mixed systems. Additional features include EDID management, digital audio input via Toslink, 2-channel audio extraction, HDCP 2.2 compatibility, CEC pass-through, and PoH power over HDBaseT. CE Certified and RoHS compliant, this kit is ideal for modern laptop and desktop integration requiring reliable HDMI and USB extension.

Main Features

  • Supports HDMI 2.0 (a/b)
  • Bi-directional USB 2.0 support up to 250 Mbps
  • 18 Gbps bandwidth support
  • 4K60 4:4:4 18Gbps HDBaseT extender over single CAT UTP/STP
  • 40 m 4K transmission (up to 4K60 4:4:4, HDR) on Cat6A cable
  • Full HDR support including HDR, HDR10+, and HLG
  • 2Ch audio extraction at transmitter and Toslink digital audio input at receiver
  • Audio return channel on HDMI and CEC pass-through
  • EDID management and emulation
  • HDCP 2.2 and earlier versions supported

    • General Information

    Name:AV Pro Edge AC-CXWP-KVM-KIT HDMI / Bi-Directional USB Wall Plate Kit, 18Gbps
    Category:AV Pro Edge, Pro AV, Commercial Audio, Pro Wall Plates
    UPC Code:850015330124
    Country of Origin:China. Country of origin is subject to change.
