Image of 8A-ACBTSSD10
Shop all AV Pro Edge

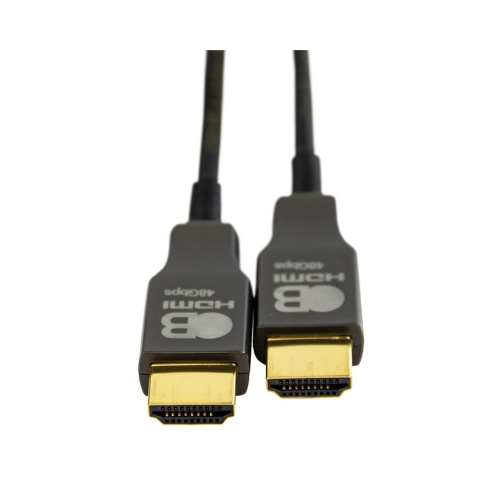

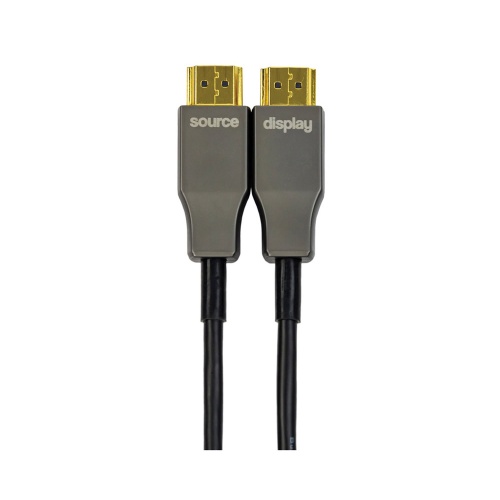

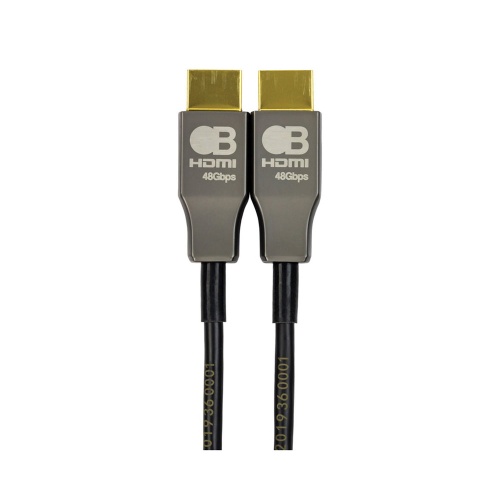

AV Pro Edge AC-BTSSF-10KUHD-10 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 10m

AC-BTSSF-10KUHD-10|8A-ACBTSSD10
Shop all AV Pro Edge

AV Pro Edge AC-BTSSF-10KUHD-10 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 10m

AC-BTSSF-10KUHD-10|8A-ACBTSSD10

Sign In for Dealer Pricing

Become an ADI Customer
Image of 8A-ACBTSSD10
AV Pro Edge

AV Pro Edge AC-BTSSF-10KUHD-10 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 10m

AC-BTSSF-10KUHD-10 | 8A-ACBTSSD10

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Bullet Train HDMI 2.1 cables are engineered for mission-critical environments requiring stable, high-performance connections. These active optical cables combine Cleerline SSF fiber optics and copper wire to deliver 48Gbps bandwidth and frame rates up to 120 fps, with latency up to 20% lower than passive copper HDMI cables. They are ISF Certified for color accuracy, fully CMP/plenum-rated, and support resolutions up to 10K, including HDR, Dolby Vision, and 3D signals. Featuring VRR and FRL support, these cables require power from the HDMI port or an optional 5V USB dongle, and come with fiber strands ready for future termination and versatile use in AV or data applications.

Main Features

  • Supports 48 Gbps bandwidth and 120 fps/hz frame rates
  • CMP and Plenum cable ratings for safety and installation
  • Supports FRL and Variable Refresh Rate (VRR)
  • Compatible with 4K, 5K, 8K, and 10K resolutions
  • Includes Ethernet support and ARC/eARC audio return channels
  • Supports 10 and 12 bit color depths
  • Handles HDR, Dolby Vision, 7.1 Audio, Dolby Audio (including Atmos), and DTS Audio
  • Certified by ISF for display color accuracy and fully UL 444/CSA C22.2 No. 214, CE, FCC, RoHS
  • Low latency active optical cable with 50mA power draw from HDMI port
  • Outfitted with four terminable Cleerline SSF fiber optic strands for future use

    • General Information

    Name:AV Pro Edge AC-BTSSF-10KUHD-10 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 10m
    Category:AV Pro Edge, Pro AV, Commercial Connector Cables, Pro HDMI Cables
    UPC Code:850001710855
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Manufacturer Brochure
