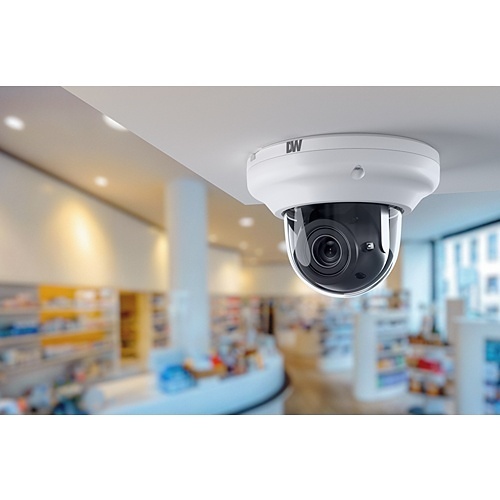

Digital Watchdog DWC-XSDE08MIC1 MEGApix AI 4K Low-Profile Dome Edge IP Camera, 2.7-13.5mm Varifocal Lens

DWC-XSDE08MIC1 | 6K-XSDE08MI1

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

This serverless MEGApix Ai CaaS all-in-one IP camera provides 4K resolution at real-time 30fps with edge Ai and DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required.

Main Features

Serverless Architecture - Eliminates the need for external servers, enabling faster deployment and reducing infrastructure. costs.

4K Resolution at 30fps - Delivers ultra-clear video for detailed surveillance in real time.

Star-Light Plus Technology - Captures color images in near-total darkness, enhancing visibility in low-light environments.

AI Deep Learning Object Detection - Accurately identifies people, vehicles, and other objects with up to 40 customizable detection zones, reducing false alarms.

Built-in 1TB Storage - Supports up to 90 days of retained video, minimizing reliance on external storage solutions.

DW Spectrum Preloaded - Enables out-of-the-box operation with seamless integration into existing DW systems.

Vari-focal P-Iris Lens with Autofocus - Allows remote zoom and focus adjustments for optimal image clarity anytime.

True Wide Dynamic Range (WDR) - Ensures clear images in challenging lighting conditions, such as backlit scenes.

Two-Way Audio - Enables direct communication between the monitoring station and the camera location.

NDAA/TAA Compliant - Suitable for federal and government installations requiring strict compliance.

General Information

Name: Digital Watchdog DWC-XSDE08MIC1 MEGApix AI 4K Low-Profile Dome Edge IP Camera, 2.7-13.5mm Varifocal Lens

Category: Digital Watchdog, Video Surveillance, IP Cameras, Dome Cameras

UPC Code: 812226039432

Country of Origin: Korea, Republic of. Country of origin is subject to change.

Specifications

: ADI Part Number 6K-XSDE08MI1 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-XSDE08MIC1 Product Line MEGApix Ai CloudCam Product Model DWC-XSDE08MiC1 Product Series X - Class Supported Network Protocols IPv4

: American Wire Gauge 18AWG Application/Usage Corporate Building Built-in Microphone Yes Effective Camera Resolution 8MP Field of View Horizontal, Vertical Illumination Distance 100' Lens Type Varifocal, Zoom Material Aluminum Die-cast Maximum Aperture f/1.4 Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265

: Audio Encoding G.711

: Image Sensor Type CMOS Wide Dynamic Range Yes

: Ingress Protection Rating IP67

: Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944

: Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F

: Longest Shutter Speed 1/32000 Second Minimum Illumination 0.0 lux (B/W), 0.09 lux (color) Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5

: Aspect Ratio 4:3

: Focal Length 2.7-13.5mm Focus Modes Auto, Manual

: License Quantity 1

: Network Technology 1000 Base-T Ethernet

: ADI Part Number Replaces 6K-MV84WIAT1, 6K-MV84WIAW5 Model Number Replaces DWC-MV84WIAWC1T, DWC-MV84WIAWC5

: Durability Weather Resistant Form Factor Dome Height 3.62" Weight 1.14lb Width 4.92"

: Frequency 50 Hz Input Voltage 12V

: Amperage 850mA

: Limited Warranty 5-Year

: Environmental Certification CE, FCC, TAA, UL Impact Protection Rating IK10
