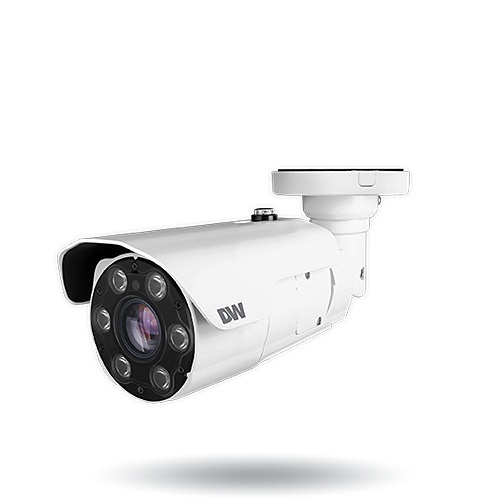

Digital Watchdog DWC-XSBA08MIC1 MEGApix Ai CaaS 4K IR Bullet Edge IP Camera, 2.7-13.5mm Vari-Focal Lens
DWC-XSBA08MIC1
|6K-XSBA08MC1
Shop All Digital Watchdog
Digital Watchdog DWC-XSBA08MIC1 MEGApix Ai CaaS 4K IR Bullet Edge IP Camera, 2.7-13.5mm Vari-Focal Lens
DWC-XSBA08MIC1 | 6K-XSBA08MC1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This MEGApix Ai CaaS all-in-one IP camera provides 4K resolution at real-time 30fps with edge Ai and DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required.
Specifications
ADI Part Number 6K-XSBA08MC1 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-XSBA08MIC1 Product Line MEGApix Ai CloudCam Product Model DWC-XSBA08MiC1 Product Series X - Class Supported Network Protocols IPv4
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 8MP Field of View Horizontal, Vertical Illumination Distance 140' Lens Type Varifocal, Zoom Material Aluminum Die-cast Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265
Audio Encoding G.711
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP67
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -40-122°F
Minimum Illumination 0.0 lux (B/W), 0.09 lux (color) Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
Aspect Ratio 4:3
Focal Length 2.7-13.5mm Focus Modes Auto, Manual
License Quantity 1
Network Technology 1000 Base-T Ethernet
ADI Part Number Replaces 6K-MB44AWC1T, 6K-MB44WIWC5 Model Number Replaces DWC-MB44WIAWC1T, DWC-MB44WIAWC5
Color White Durability Weather Resistant Form Factor Bullet Weight 2.64 lb
Frequency 50 Hz Input Voltage 12V DC
Amperage 1.1A
Limited Warranty 5-Year
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Features 4K sensor at real-time 30 fps, AI Deep Learning object detection, Create up to 40 separate detection zones, Easy setup with no analytics calibration, Seamless integration and control with DW Spectrum, Star-Light Plus color in near-total darkness technology Impact Protection Rating IK10
