2N

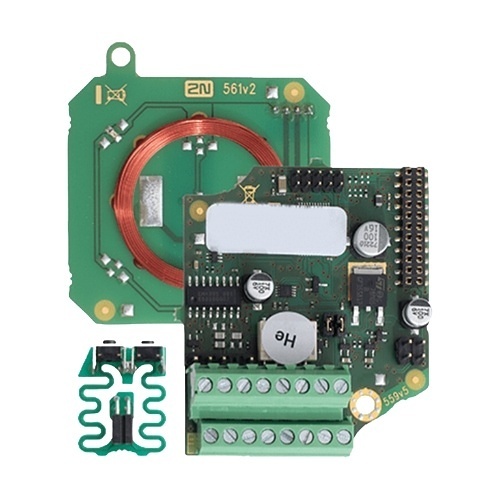

2N 03358-001 IP Force 2.0 RFID Card Reader, 125 kHz, Seos Compatible 13.56 MHz and OSDP

03358-001 | 5E-03358001

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Internal RFID card reader for installation in 2N IP Force 2.0 intercoms. Allows the use of both 125 kHz and 13.56 MHz frequency cards, including HID encrypted access credentials. Two additional relays, two logical inputs, and an OSDP interface are available. The OSDP protocol provides higher security than the Wiegand protocol and encrypts the transmitted data. It’s compatible with the 2N IP Force 2.0 two-button and pictogram models (9151301CRP, 9151302CR). It also includes a tamper switch to signal when the front panel is opened.

Main Features

  • Active switch output: 9.8 to 13.8VDC according to power supply (PoE+: 11,6V; adapter: power supply voltage minus 0,4V), up to 400 mA
  • Inputs: 2 inputs: active (requires external voltage) or passive (requires external contact only)
  • Signaling output: Internal red LED under the intercom front panel
  • Power supply: 12VDC ± 15% / 350 mA for external RFID card reader
  • 125 kHZ: EM4x02, NXP HiTag2, HID Prox
  • 13.56 MHz - ISO14443A: MIFARE Classic, MIFARE Plus, MIFARE Mini, MIFARE Ultralight, MIFARE DESFire
  • PicoPass: HID iClass CSN, Picopass
  • FeliCa: Standard, Lite
  • Working temperature: -30 °C – +55°

    • General Information

    Name:2N 03358-001 IP Force 2.0 RFID Card Reader, 125 kHz, Seos Compatible 13.56 MHz and OSDP
    Category:2N, Communications, Intercoms & Telephone Entry, Intercom Door Stations
    UPC Code:8595159524764
    Country of Origin:Czech Republic. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
