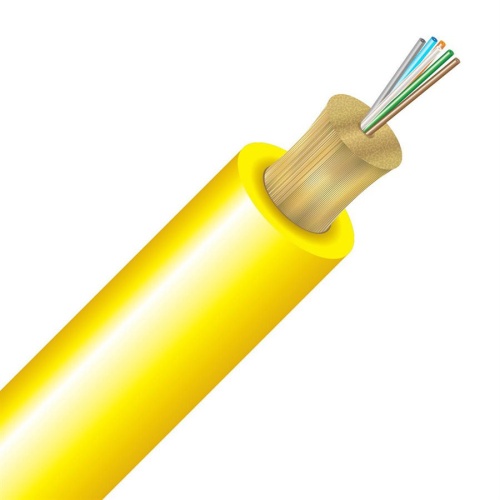

Image of 4E-6D95SOS2P
Acheter Cleerline

Cleerline 6D9125SMOS2P 6 Strand 9/125 SSF Interlocking Armored Micro Distribution Cable, OS2, Plenum, 1000', Yellow

6D9125SMOS2P|4E-6D95SOS2P
Acheter Cleerline

Cleerline 6D9125SMOS2P 6 Strand 9/125 SSF Interlocking Armored Micro Distribution Cable, OS2, Plenum, 1000', Yellow

6D9125SMOS2P|4E-6D95SOS2P

Se connecter prix revendeur

Devenir client ADI
Cleerline

Cleerline 6D9125SMOS2P 6 Strand 9/125 SSF Interlocking Armored Micro Distribution Cable, OS2, Plenum, 1000', Yellow

6D9125SMOS2P | 4E-6D95SOS2P

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The Cleerline SSF 6 strand fiber Micro Distribution cable features a 3.0 mm Plenum rated jacket designed for high-performance inter-building or intra-building data communication backbones. This distribution style SSF cable is fully compatible with standard 9/125 Single Mode fiber connectors. It offers exceptional durability and strength, with flex testing up to 2000 cycles, impact resistance of 1500 cycles, and crush resistance to 100 kgf/mm. The cable boasts high mechanical strength, superior fatigue resistance (nD = 30), and up to 10,000 times the bend longevity of traditional fiber. An integral SSF coating protects the glass fiber, providing increased safety through remarkable bend insensitivity. The exclusive 250 micrometer Soft Peel acrylate enhances fiber protection. Ideal for installation in ducts or underground conduits, this UL-listed cable supports Fiber-to-the-Desk (FTTD) and Fiber-to-the-Home (FTTH) applications. It is listed as OFNP type for environmental air return spaces per NEC guidelines. Choose Cleerline SSF Micro Distribution cable for reliable, durable, and efficient fiber optic connectivity.

Principales caractéristiques

  • Micro distribution style SSF cable with 3.0 mm plenum rated jacket
  • Ideal for inter-building or intra-building data backbone communication
  • Compatible with standard 9/125 Single Mode fiber connectors
  • Extremely durable SSF fiber with flex, impact, and crush resistance
  • High mechanical strength and superior fatigue performance (nD = 30)
  • Up to 10,000x bend longevity compared to traditional fiber
  • Integral SSF coating for enhanced glass protection
  • Exceptional bend insensitivity for increased safety
  • Exclusive 250 micrometer soft peel acrylate coating
  • UL listed OFNP rated for duct, plenum, and air return installations

    • Renseignements généraux

    Nom:Cleerline 6D9125SMOS2P 6 Strand 9/125 SSF Interlocking Armored Micro Distribution Cable, OS2, Plenum, 1000', Yellow
    Category:Cleerline, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
    UPC Code:602573831359
    Country of Origin:United States. Country of origin is subject to change.
