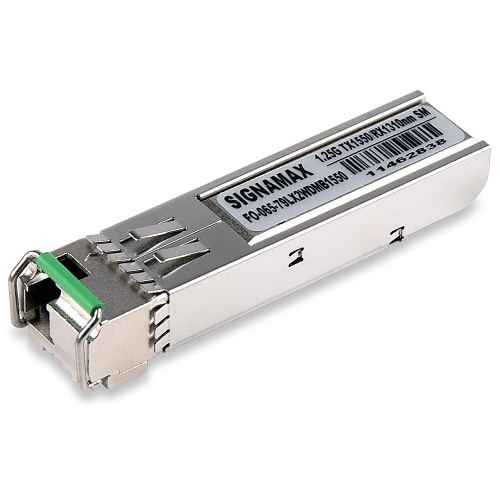

Signamax FO-065-79LX2WDMB1550 1000LX WDM SFP Module, TX 1550NM, RX 1310
FO-065-79LX2WDMB1550|47-06579LX2W
Signamax FO-065-79LX2WDMB1550 1000LX WDM SFP Module, TX 1550NM, RX 1310
FO-065-79LX2WDMB1550|47-06579LX2W
Signamax
Signamax FO-065-79LX2WDMB1550 1000LX WDM SFP Module, TX 1550NM, RX 1310
FO-065-79LX2WDMB1550 | 47-06579LX2W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

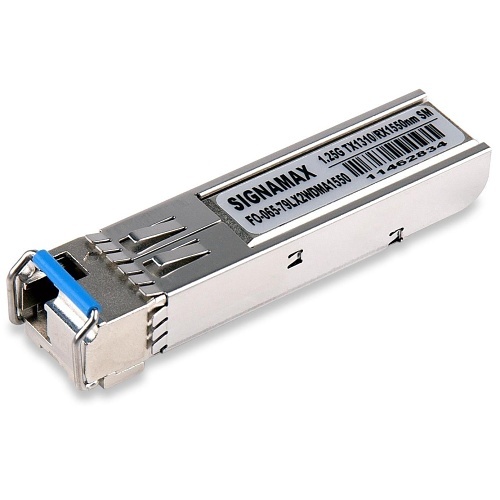

The Signamax 065-79LX2WDMx1550 series models are Small Form-factor Pluggable (SFP) multimode fiber modules that support Gigabit Ethernet or SONET OC-12 over a single strand of singlemode fiber cable at distances up to 20 . There are two types of models in this series- one transmits at 1310 nm and receives at 1550 nm (model 065-79LXnWDMA1550), and the other transmits at 1550 nm and receives at 1310 nm (model 065-79LXnWDMB1550). These modules are designed to be used in pairs facing each other across a single stand of singlemode fiber. The "n" in the part number refers to the first digit of the typical distance spanned in (2 - 20 km). They are a cost-effective method of providing changeable Gigabit Ethernet or SONET OC-12 single-fiber singlemode interfaces to switches and media converters equipped with a standard SFP slot.
Main Features
General Information
Name:Signamax FO-065-79LX2WDMB1550 1000LX WDM SFP Module, TX 1550NM, RX 1310
Category:Signamax, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number 47-06579LX2W Brand Name Signamax Manufacturer Part Number FO-065-79LX2WDMB1550
