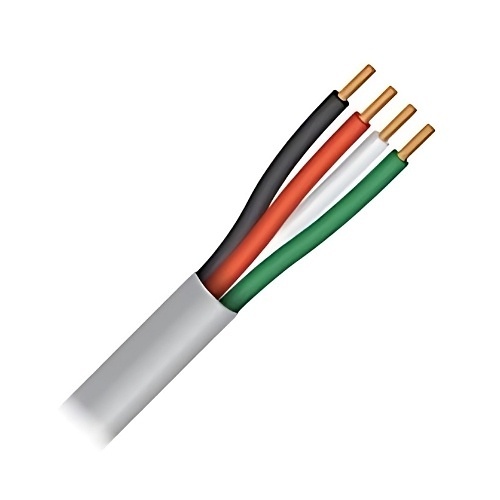

Paige 747180450C 18AWG 4-Conductor Solid Cable, Low Capacitance, 500' Box, Gray

747180450C|6M-747180450
Shop all Paige

Paige 747180450C 18AWG 4-Conductor Solid Cable, Low Capacitance, 500' Box, Gray

747180450C|6M-747180450

Sign In for Dealer Pricing

Become an ADI Customer
Paige

Paige 747180450C 18AWG 4-Conductor Solid Cable, Low Capacitance, 500' Box, Gray

747180450C | 6M-747180450

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

18 AWG 4 conductor solid bare copper wire with FPE insulation, and overall PVC jacket for lowvoltage electronic cable applications.

Main Features

  • 18 AWG Solid Annealed Bare Copper 4 Conductors
  • Foam Polyethylene Insulation
  • Polyvinylchloride Jacket, Ripcord
  • Operating Voltage: 300V RMS
  • Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
  • Cable suitable for installation in Canada under Section 60 of CEC, Part I
  • C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
  • UL listed as CL3 per UL standard 13 or FPL per UL standard 1424
  • Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
  • Cable is REACH compliant per Regulation (EC) No 1907/2006 (197) Updated January 15, 2019

    • General Information

    Name:Paige 747180450C 18AWG 4-Conductor Solid Cable, Low Capacitance, 500' Box, Gray
    Category:Paige, Wire & Cable, Fire & Life Safety Cables, FPL Unshielded Cables
    UPC Code:
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
