Cleerline D50125MOM3R 1000' (304.8m) Duplex 50/125 OM3 Indoor Riser Fiber Optic Cable, 1000', Black

D50125MOM3R | 4E-D501MOM3R

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

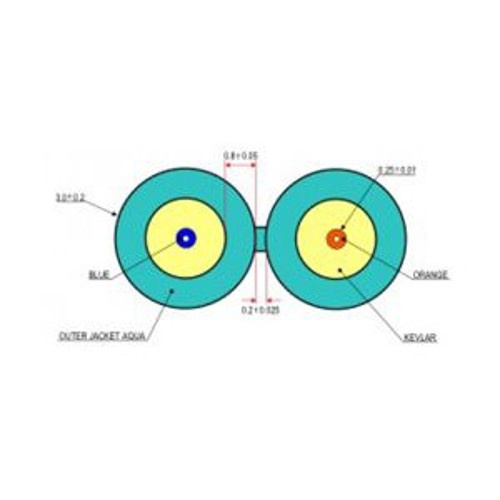

The Cleerline SSF Duplex fiber optic cable features a 50/125 multimode OM3 core with a 3.00mm dual-unit riser-rated jacket. This innovative cable significantly simplifies termination by eliminating the need to strip the acrylate/polymer coating from the glass fiber, enabling fast, safe installation while protecting the glass from exposure and fractures. The fiber's proprietary 250um coating provides exceptional flexibility and an ultra-tight bend radius, minimizing attenuation loss even under tight bends. Color-coded per TIA/EIA 568C standards, the cable is reinforced with aramid yarns for high tensile strength, supporting installation loads up to 1000N and operating temperatures from -20 to +75 °C. Packaged on 1000ft spools, it is ideal for efficient, reliable multimode fiber optic deployments where performance and safety are critical. Discover the ease and durability of Cleerline SSF Duplex for your network installations.

Main Features

  • Duplex 50/125 Multimode OM3 fiber for high-performance networking
  • No stripping required, speeds up fiber optic termination
  • Increased safety with flexible fiber during termination
  • Ultra tight bend radius reduces attenuation loss
  • Soft Peel 250um jacket identifier for easy identification
  • 3.0mm diameter aqua jacket with Kevlar aramid yarns for durability
  • Wide operating temperature range from -20 to +75°C
  • Supports high tensile load up to 1000 N during installation
  • Riser rated jacket suitable for vertical cable runs
  • Includes sequential footage markings for easy measurement

    • General Information

    Name:Cleerline D50125MOM3R 1000' (304.8m) Duplex 50/125 OM3 Indoor Riser Fiber Optic Cable, 1000', Black
    Category:Cleerline, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
    UPC Code:091037209023
    Country of Origin:China. Country of origin is subject to change.
