Product Overview

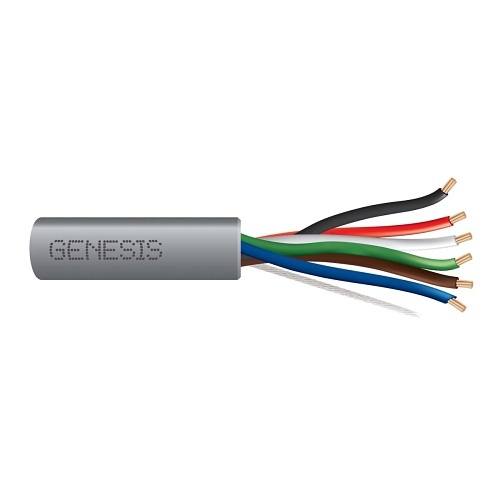

This Genesis® cable features 6 stranded 22 AWG copper conductors and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications
General Information
Name : Genesis 21065509 22/6 Stranded Riser Cable, Unshielded, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Gray (Replaces 11075509) , Genesis
Category : Riser Unshielded Cables
UPC Code : 619172011143
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : WG-21065509
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 21065509
Packaged Quantity : 1
Product Model : 21065509
Product Name : 22 AWG 6C STR Riser, Gray, 500 FT. Pull Box
Product Type : Access & Security Cable
Weight (Approximate) (g) : 4036.972
Technical Information
American Wire Gauge : 22AWG
Cable Listing : CL3R|FPLR|CMR|FT4|Sunlight Resistant
Cable Type : Multi-conductor/Multi-pair
Connector on First End : Bare Wire
Device Supported : Audio Device, Security Device
Jacket Type : FT4, Riser
Number of Conductors : 6
Number of Pairs : 3
Shielding : No
Solid or Stranded : Stranded
Others
ADI Part Number Replaces : WG-11075509
Model Number Replaces : 11075509
Physical Characteristics
Cable Length : 500'
Cable Length (mm) : 152400
Color : Gray
Insulation Material : PP
Material : Bare Copper
Package Type : REELEX Pull Box
Weight (Approximate) : 4.04 kg
Warranty
Limited Warranty : 3 Year; 3-for-1
Miscellaneous
Environmental Certification : ROHS
Environmentally Friendly : Yes
Features : Stranded, Sunlight Resistant
Indoor/Outdoor : Indoor
TAA Compliant : yes
