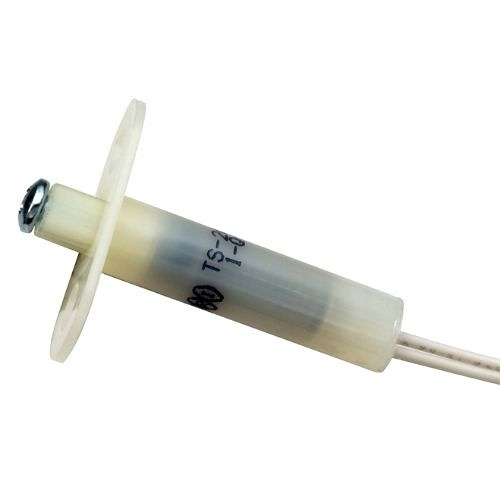

GRI TS-20-36 3/8" Diameter Recessed Tamper Plunger Switch, Adjustable, Reed Plunger with 36" Leads and without Brackets
GRI TS-20-36 3/8" Diameter Recessed Tamper Plunger Switch, Adjustable, Reed Plunger with 36" Leads and without Brackets
GRI TS-20-36 3/8" Diameter Recessed Tamper Plunger Switch, Adjustable, Reed Plunger with 36" Leads and without Brackets
TS-20-36 | GI-TS2036
Please sign in to view pricing and availability and to add to cart.
Product Overview
The adjustable plunger actuated TS series was developed to provide a tamper switch with a smaller diameter for applications where a normal plunger or roller ball type switch is too large. The 3/8" diameter is ideal for a variety of door and window applications. The oval flange allows the switch to be solidly anchored where needed. The design also resists locking problems caused by expansion or contraction. Available with a bracket for box tamper. Made of nylon for flexibility, the stainless steel spring and sealed contact insure a long service life.
Main Features
General Information
Specifications
ADI Part Number GI-TS2036 Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number TS-20-36 Product Model TS-20-36 Product Name TS-20-36 Plunger Switch Product Series TS-20 Product Type Plunger Switch
Connectivity Technology Wired Contact Form Form A
Weight 1lb
Contact Type Closed Loop Diameter 0.4" Installation Type Hybrid Length 36"
Limited Warranty Lifetime Warranty
Additional Information - Press To Fit
- 12" #22AWG Leads
- Screw Down Flange on TS-20 For Positive Retention
- Plated Contacts Resist Sticking or Freezing
- Mounting Hardware Included
- Supervisory Loops Upon Request
Country of Origin US Environmental Certification UL Environmentally Friendly Yes Features Easy to Install
