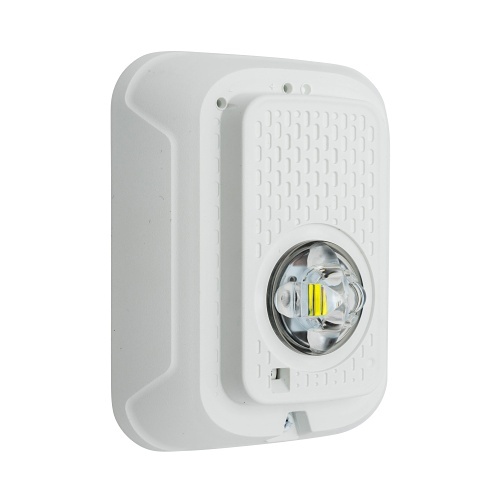

Image of BK-SWLEDP
Shop all System Sensor

System Sensor SWLED-P L-Series 2-Wire Wall-Mount Strobe with LED, White

SWLED-P|BK-SWLEDP
Shop all System Sensor

System Sensor SWLED-P L-Series 2-Wire Wall-Mount Strobe with LED, White

SWLED-P|BK-SWLEDP

Sign In for Dealer Pricing

Become an ADI Customer

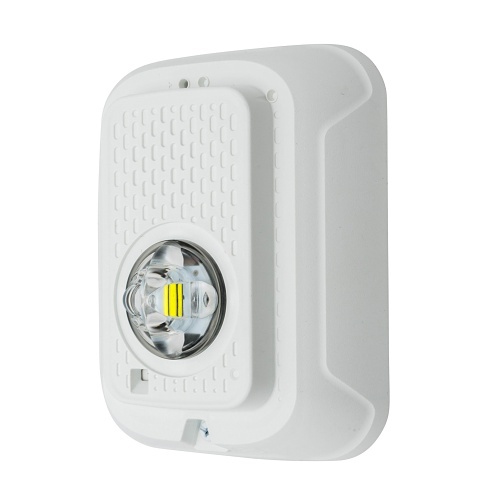

Image of BK-SWLEDP
System Sensor

System Sensor SWLED-P L-Series 2-Wire Wall-Mount Strobe with LED, White

SWLED-P | BK-SWLEDP

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The System Sensor L-Series LED strobes are rich with features that increase application versatility, simplify installation, and maximize profits with lower current draw and modern aesthetics. LED lighting technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements allowing for simpler and lower cost installations. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela settings and a rotary switch for horn tones with two volume selections.

Main Features

  • LED Technology provides lower current draw
  • Digital Voltage Meter (DVM) diagnostic test points for Horn Strobes
  • Common aesthetics across the L-Series platform
  • Standard and compact sizes
  • Tamper-resistant construction
  • 24VDC operation only
  • Field-selectable candela settings on wall units 15, 30, 75, 95, 110, 135, and 185
  • Field-selectable candela settings on ceiling units 15, 30, 75, 95, 115, 150, and 177
  • Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity
  • Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices

    • General Information

    Name:System Sensor SWLED-P L-Series 2-Wire Wall-Mount Strobe with LED, White
    Category:System Sensor, Fire, Fire Notification Devices, Strobes, ADI Pro Rewards
    UPC Code:783863059094
    Country of Origin:Mexico. Country of origin is subject to change.
