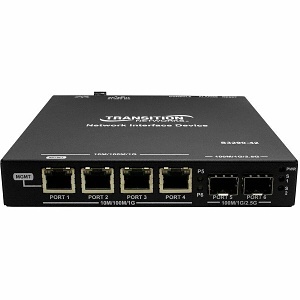

Lantronix S3290-42-EU NID 4-Port Ethernet Network Interface Device, 4XTP 2X SFP, Bundle

S3290-42|P6-S329042EU
Shop all Lantronix

Lantronix S3290-42-EU NID 4-Port Ethernet Network Interface Device, 4XTP 2X SFP, Bundle

S3290-42|P6-S329042EU

Sign In for Dealer Pricing

Become an ADI Customer
Image of P6-S329042EU
Lantronix

Lantronix S3290-42-EU NID 4-Port Ethernet Network Interface Device, 4XTP 2X SFP, Bundle

S3290-42 | P6-S329042EU

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Remotely Managed NID with Built-in Traffic Generator

Lantronix managed S3290 NID provides advanced packet performance metering and service creation directly at the customer premises and cell sites. The S3290 is optimized for business Ethernet and mobile backhaul deployments.

The S3290 is a multi-service NID that provides SLA-assurance and advanced fault management that is MEF CE 2.0 certified. The S3290 supports advanced features and numerous security features. The S3290 can be managed and provisioned with Lantronix's CommandPoint NMS or via Web, CLI and SNMP (v1, v2c & v3). The S3290 offers AC or DC power inputs for operation in a variety of environments. The SFP ports support 100Mbps, 1000Mbps or SGMII SFPs. CWDM and Bi-Di SFPs are also supported, allowing for flexible network architectures.

Main Features

  • Any port can be network (NNI) or client (UNI)
  • MPLS-TP
  • SNMP v1, v2c, and v3
  • IPv6 and IPv4 support
  • VLAN (IEEE 802.1Q) in-Q (C-Tag / S-Tag)
  • RMON and SYSLOG
  • OAM Support: IEEE 802.3ah Link OAM | IEEE 802.1ag Service OAM | ITU Y.1731 Performance Monitoring
  • Protection: ITU G.8032/G.8031 | IEEE RSTP, MSTP
  • IEEE 1588v2
  • DC or AC power input

    • General Information

    Name:Lantronix S3290-42-EU NID 4-Port Ethernet Network Interface Device, 4XTP 2X SFP, Bundle
    Category:Lantronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
    UPC Code:783384246720
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Manufacturer Brochure
