Product Overview
The 660 multi-purpose locking solution brings electronic access control to your cabinets and drawers. This electro-mechanical lock has over 1000 lbs holding force. Strong convenient and flexible, it is ideal for corporate and government applications including lockers, cabinets and display cases.
Electrical
- Available in either 12 or 24 VDC
- 12 - 24 VDC +/- 10%
- 240 mA @ 12VDC continuous duty
- 120 mA @ 24VDC continuous duty
- 700 mA @ 12VDC (pre-load option)
- 350 mA @ 24VDC (pre-load option)
Standard Features
- Static strength 1,000 lbs.
- Dynamic strength over 100 ft-lbs.
- Endurance 1,000,000 cycles
- Available in either 12 or 24VDC
- All metal construction
- Adjustable mounting brackets with final lockdown feature
- 6 foot cable lead
- Patents: 8,562,040; 7,878,560
- RoHS compliant
- 3 year limited warranty
- Patent #8,562,040; 7,878,560
General Information

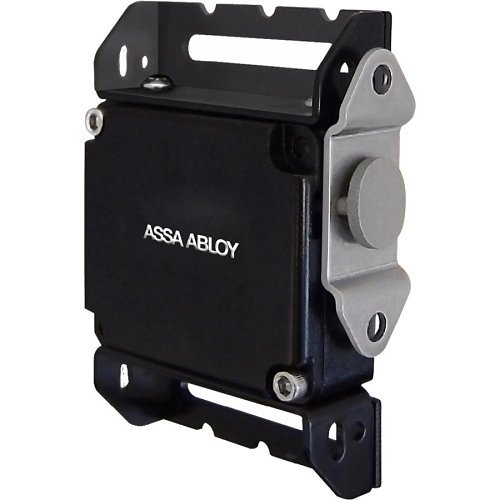

Name : HES 660-12D-LBSM 660-Series 12V Electromechanical Surface Mount Cabinet Lock with Locked State Monitoring , HES by ASSA ABLOY
Category : Cabinet Locks
UPC Code : 999999392314
Specifications
General Information
ADI Part Number : HE-66012DLBS
Miscellaneous
TAA Compliant : No
