Product Overview

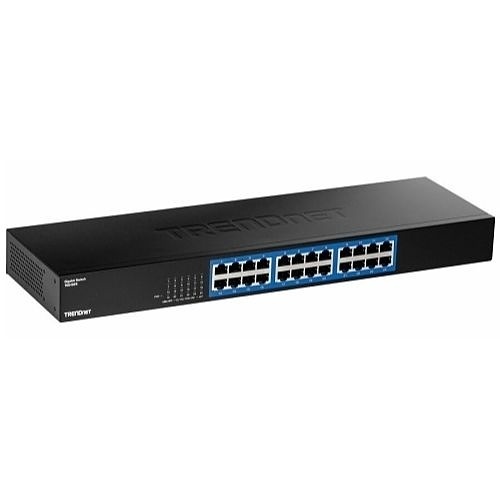

The 24-Port Gigabit Switch, model TEG-S25, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
- DEVICE INTERFACE: 24 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 24-port gigabit switch has a 48Gbps switching capacity with a forwarding rate of 35.71Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- KMOUNT DESIGN: Sturdy metal housing with rackmount brackets included for greater installation flexibility and well suited for 19" 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
General Information
Name : TRENDnet TEG-S25 24-Port Gigabit Rack Mountable Switch RJ-45 , TRENDnet
Category : Network Switches
UPC Code : 710931140873
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TQ-TEGS25
Brand Name : TRENDnet
Manufacturer : TRENDnet
Manufacturer Part Number : TEG-S25
NDAA Compliant : Yes
Product Model : TEG-S25
Product Name : 24-Port Gigabit Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 1728.187
Technical Information
Media Type Supported : Twisted Pair
Power Consumption : 14.24W
Interfaces/Ports
Network (RJ-45) : Yes
Port/Expansion Slot Details : 24 x Gigabit Ethernet Network
Total Number of Network Ports : 24
Media & Performance
Network Technology : 1000Base-X
Network & Communication
Ethernet Technology : Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Physical Characteristics
Compatible Rack Unit : 1U
Form Factor : Rack mount
Height : 4.29" (108.97 mm)
Height (mm) : 108.966
Weight (Approximate) : 1.73 kg
Width : 0.98" (24.89 mm)
Width (mm) : 24.892
Power Description
Frequency : 50 Hz|60 Hz
Frequency (Hz) : 50, 60
Power Consumption (W) : 14.240
Power Source : Power Supply
Product Information
Length : 6.3"
Length (mm) : 159.766
Warranty
Limited Warranty : Lifetime
Miscellaneous
TAA Compliant : yes
