Securitron DEM680E-630 DEM680E Series Delayed Egress Ecomag Magnalock - 630, Satin Stainless Steel
Securitron by ASSA ABLOY

Securitron DEM680E-630 DEM680E Series Delayed Egress Ecomag Magnalock, Satin Stainless Steel

DEM680E-630 | SN-DEM68E630

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

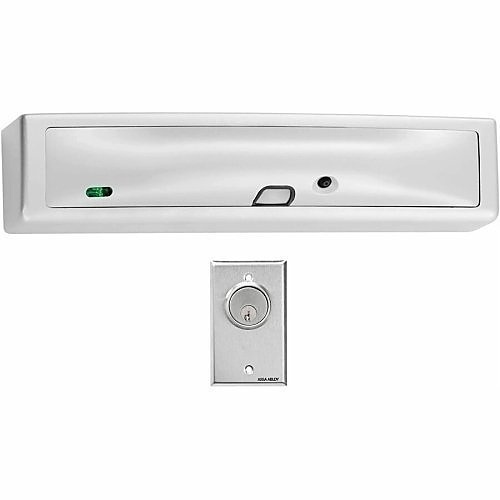

Configurable, 1,200 lbs holding force, bracket mounted, delayed egress Magnalock.

Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.

Building on the technology of the Securitron EcoMag Series, the DEM680E is a direct replacement for the iMXDA. Designed for applications that require a lock that delays the opening of a door, the DEM680E standard model is HUGS-compliant with specific code compliant models also available. For use on interior and perimeter exit, single, out-swinging doors.

Main Features

  • Autosensing dual voltage with microprocessor technology – no field adjustment required
  • Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
  • Instant release circuit – no residual magnetism
  • Easily visible LEDs indicate status on secure side of door
  • Fully integrated delay and detection features for fast installation of delayed egress system
  • Auto calibrated door movement detection up to 1/4" [6.35mm]
  • Alarm strobe indicates countdown; stays illuminated post alarm until reset
  • Size optimized to work with door closers
  • External alarm relay isolated dry contact (1 A at 24 VDC)
  • Configurable settings include: Nuisance delay times, Irrevocable alarm times, Bypass delay times, No irrevocable alarm after bypass expiration

    • General Information

    Name:Securitron DEM680E-630 DEM680E Series Delayed Egress Ecomag Magnalock, Satin Stainless Steel
    Category:Securitron by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
    UPC Code:784607050117
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
