Image of H2-107F6RWH
Shop all ICC

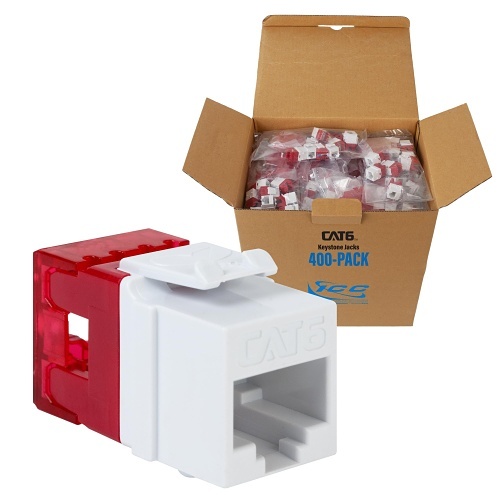

ICC IC107F6RWH CAT6 Keystone Jack with Slim Profile 180° Punch Down, RJ45 PoE++ for Wall Plate or Patch Panel, 400-Pack, White

IC107F6RWH|H2-107F6RWH
Shop all ICC

ICC IC107F6RWH CAT6 Keystone Jack with Slim Profile 180° Punch Down, RJ45 PoE++ for Wall Plate or Patch Panel, 400-Pack, White

IC107F6RWH|H2-107F6RWH

Sign In for Dealer Pricing

Become an ADI Customer
Image of H2-107F6RWH
ICC

ICC IC107F6RWH CAT6 Keystone Jack with Slim Profile 180° Punch Down, RJ45 PoE++ for Wall Plate or Patch Panel, 400-Pack, White

IC107F6RWH | H2-107F6RWH

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

CAT6 High Density (HD) Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The Category 6 HD design offers a smaller rear footprint maximizing space in confined work areas. Features CAT6 rated connectors provide excellent performance for data networks. PCB technology provides maximum performance and superior signal quality. Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals. Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements. Designed with rear split back 110 IDC reducing termination time. Terminate with 110 punch down tool or JackEasy Termination Tool. Reduced rear footprint allows for greater connectivity density. Provides for more port configurations in a smaller area. Includes an integrated TIA-568A/B color wiring diagram. Backward compatible with all lower rated category components. Works with all Work Area Outlets faceplates, inserts, surface mount boxes. Used with Category 6 patch cords. Exceeds ANSI/TIA-568-C requirements for permanent performances. UL 1863 Compliant.

Main Features

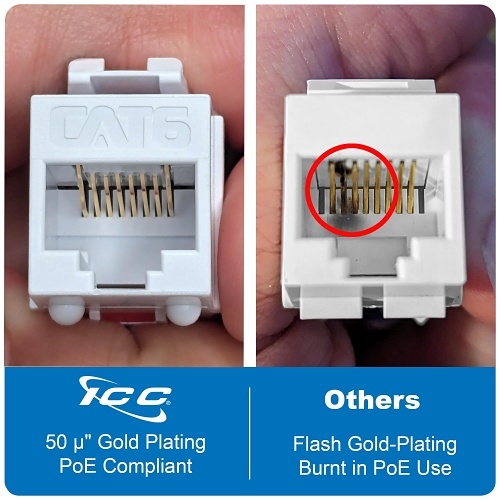

  • PoE++ Rated For High-Power Devices: This CAT6 keystone jack features 50 micro-inch gold-plated high-retention contacts over 100 micro-inches of nickel, providing support for up to 100 watts of Power over Ethernet (PoE++). Ideal for powering devices such as pan-tilt-zoom security cameras, webcams, and other types of networked equipment, these RJ45 (8P8C) connectors are built for 8-position, 8-condu
  • Fast 4-Pair Termination: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH), enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cabl
  • TAA Compliant & Section 889 Certified: ICC CAT6 keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, with UL Listing and RoHS Compliance. UL 1863 compliant for safety, thereby ensuring adherence to the highest standards. ETL Verified for performance, they conform to TIA 568.2-D (U.S.) and IEEE 802.3 (International) standards, supportin
  • Max. Space Efficiency: The slim body of the jack maximizes space utilization in modular patch panels and work area outlets for high density applications, allowing for greater connectivity and more port configurations within the same space. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, e
  • Complete Cabling System: Install ICC CAT6 Keystone Jacks with ICC CAT6 Cables, CAT6 Patch Panels, and CAT6 Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 6 requirements for enhanced crosstalk cancellation, reduced return loss, and improved network reli

    • General Information

    Name:ICC IC107F6RWH CAT6 Keystone Jack with Slim Profile 180° Punch Down, RJ45 PoE++ for Wall Plate or Patch Panel, 400-Pack, White
    Category:ICC, Data Comm & Networking, Cable Connectors, Inserts & Adapters
    UPC Code:633758093934
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
