Product Overview

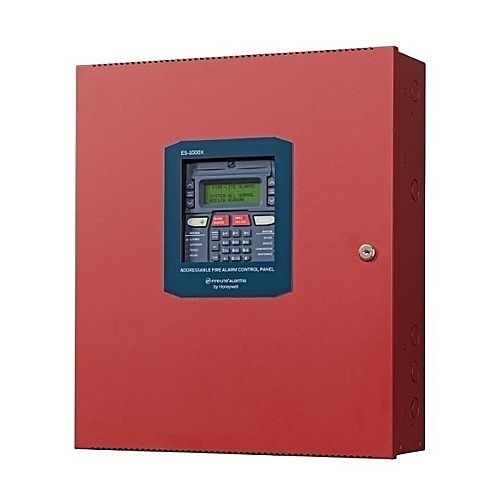

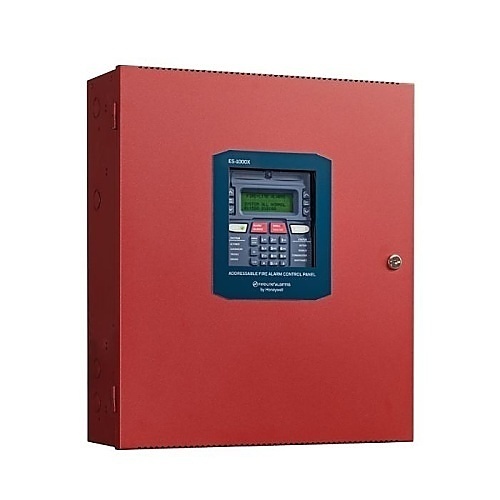

The Fire-Lite ES-1000X, ES-1000XC, and ES-1000XI are intelligent addressable Fire Alarm Control Panels (FACP) with a pre-installed loop card. The ES-1000X control panels support up to 318 addressable devices per Signaling Line Circuit (SLC) (Digital Communication Loop) (DCL) loop (159 detectors and 159 modules) with a maximum of three loops. With an extensive list of powerful features, the ES-1000X programs just like Fire-Lite's other addressable products while offering expanded support for up to 954 devices for larger and more complex installations.

Main Features

Listed to UL Standard 864, 10th edition

Pre-installed IPOTS-COM Ethernet IP and POTS (Plain Old Telephone Service) Central Station Communicator (ES-1000X/C)

Optional CLSS or GSM Central Station Communicators

Compatible with SWIFT wireless devices

Four independently programmable, built-in, Class A or Class B NAC circuits

Selectable strobe synchronization for System Sensor, Wheelock, and Gentex devices

Four programmable function keys for ease of maintenance

Two programmable relays and one fixed trouble relay

Built-in Programmer

Integral 80-Character LCD display with backlighting

General Information

Name:Fire-Lite ES-1000XC 954-Point Addressable Fire Alarm Control Panel, 318 Addressable Devices per Signaling Line Circuit

Category:Fire-Lite Alarms by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels

UPC Code:783008112714

Country of Origin:United States. Country of origin is subject to change.

Specifications

ADI Part Number

FL-ES1000XC

Brand Name

Fire-Lite Alarms by Honeywell

Manufacturer Part Number

ES-1000XC

Product Series

1000XC

Product Type

Fire Alarm Control Panel

ADI Part Number Replaces

FL-MS9600LSC

Model Number Replaces

MS-9600LSC

Compatibility

SWIFT wireless devices

Country of Origin

Environmental Certification

ISO, UL

Environmentally Friendly

Yes

Features

Built-in dual-path communicator (POTS and IP), Single SLC that provides support for up to 318 addressable devices (159 detectors and 159 modules) per SLC with maximum 3 loops, Supports up to 954 devices for larger and more complex installations

Package Contents

backbox with with with, Bag board circuit communicator, Cables, Chassis containing display, Key transformer, Plastic dress Main panel screws, Pre-installed door
