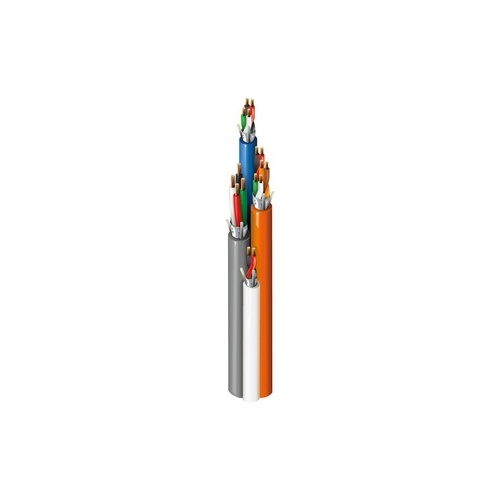

Name: Belden 658AFS 0001000 22/3 Pair, 18/4, 22/4, 22/2, Shielded, Banana Peel, CMP, 1000' (304.8m) Reel, Orange, White, Blue, Gray
Brand: Belden
SKU: 7B-658AFS001
Price: $0.00

Belden 658AFS 0001000 22/3 Pair, 18/4, 22/4, 22/2, Shielded, Banana Peel, CMP, 1000' (304.8m) Reel, Orange, White, Blue, Gray

Brand: Belden

ADI #:7B-658AFS001 Model #: 658AFS 0001000 Name: Belden 658AFS 0001000 22/3 Pair, 18/4, 22/4, 22/2, Shielded, Banana Peel, CMP, 1000' (304.8m) Reel, Orange, White, Blue, Gray

Control the compatible device with ease
Features Bare Wire cable type to better accommodate your precise requirements with maximum productivity
Stranded feature for your convenience and ease of usage

Product Overview

Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest® insulation, Each cable has overall Beldfoil® shield and Flamarrest® jacket, Banana Peel® No overall jacket

General Information

Name : Belden 658AFS 0001000 22/3 Pair, 18/4, 22/4, 22/2, Shielded, Banana Peel, CMP, 1000' (304.8m) Reel, Orange, White, Blue, Gray , Belden
Category : Multipair Cables
UPC Code : 612825340522
Country of Origin : Mexico. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 7B-658AFS001

Brand Name : Belden

Manufacturer : Belden CDT, Inc

Manufacturer Part Number : 658AFS 0001000

Packaged Quantity : 1

Product Name : Access Control, 16c (#22-3pr, #18-4c, #22-6c), Shielded, Banana Peel, CMP

Product Type : Control Cable

Weight (Approximate) (g) : 49000

Technical Information

American Wire Gauge : 24AWG

Cable Listing : CMP

Cable Type : Bare Wire

Device Supported : Card Reader, Door Contact

Jacket Type : CMP, Plenum

Number of Conductors : 6

Shielding : Yes

Solid or Stranded : Stranded

Physical Characteristics

Cable Length : 1000'

Cable Length (mm) : 304800

Color : Blue, Gray, Orange, White

Insulation Material : Polyvinyl Chloride (PVC)

Material : PVC

Package Type : Reel

Weight (Approximate) : 49 kg

Miscellaneous

Environmental Certification : CEC, China RoHS, ELV, EU RoHS, EU WEEE

Environmentally Friendly : Yes

Features : Bendable, Stranded

Belden 658AFS 0001000 22/3 Pair, 18/4, 22/4, 22/2, Shielded, Banana Peel, CMP, 1000' (304.8m) Reel, Orange, White, Blue, Gray

Product Overview

General Information

Specifications

General Information

Technical Information

Physical Characteristics

Miscellaneous

Similar Products

Belden 658AFJ 0041000 22/3, 18/4, 22/4 and 22/2 Stranded BC Cable, Shielded, Plenum-CMP, 1000' (304.8m) UnReel, Yellow

Belden 10GX13 0041000 10GX CAT6A Enhanced Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, LP, FT6, 1000' (304.8m) Reel, Yellow

Belden 10GX13 D151000 10GX CAT6A Enhanced Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, LP, FT6, 1000' (304.8 m) Reel, Blue

Belden 558AMJ 33/2 Unshielded, 18/4 Shielded, 22/4 Unshielded, 22/2 Unshielded Access Control Riser Cable, Stranded BC, CMR, Article 800, UL1666, Indoor, 1000' (304.8m), Yellow

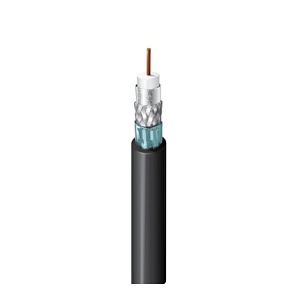

Belden 1695A 0101000 75 Ohms SDI Coax, RG-6, 18 AWG Solid BC Conductor, 1000', FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, Black
