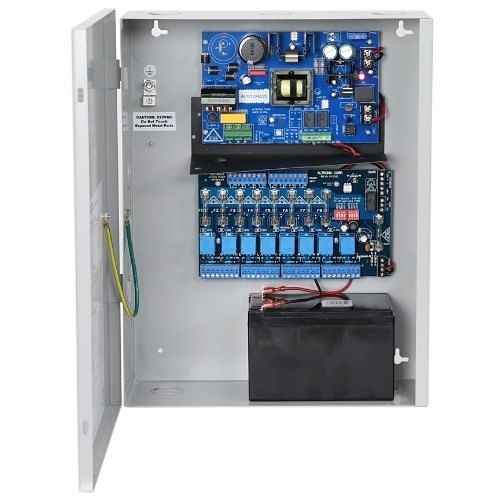

Image of AX-1012ACM22
Shop all Altronix

Altronix AL1012ACM220 Access Power Controller with Power Supply Charger, Fused Relay Outputs, 12VDC at 10A, FAI, 220VAC, BC400 Enclosure

AL1012ACM220|AX-1012ACM22
Shop all Altronix

Altronix AL1012ACM220 Access Power Controller with Power Supply Charger, Fused Relay Outputs, 12VDC at 10A, FAI, 220VAC, BC400 Enclosure

AL1012ACM220|AX-1012ACM22

Sign In for Dealer Pricing

Become an ADI Customer
Image of AX-1012ACM22
Altronix

Altronix AL1012ACM220 Access Power Controller with Power Supply Charger, Fused Relay Outputs, 12VDC at 10A, FAI, 220VAC, BC400 Enclosure

AL1012ACM220 | AX-1012ACM22

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Introducing the Altronix AL1012ACM220 Access Power Controller, a robust solution designed to convert 220VAC input into eight independently controlled 12VDC outputs, delivering a total of 10A continuous supply current. This versatile unit supports various access control devices, including mag locks and electric strikes, operating in both fail-safe and fail-secure modes. With features like selectable fire alarm disconnect, short circuit protection, and a built-in battery charger for seamless power backup, it ensures reliable performance. Ideal for security applications, this power controller is your go-to choice for efficient access management. Don't miss out—secure your access control system today!

Main Features

  • Eight (8) independently controlled Outputs.
  • Output options: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs; b) Eight (8) formin.C" 5A rated relay outputs; c) Any combination of the above.
  • Eight (8) auxiliary power outputs (unswitched).
  • Output fuses are rated at 3.5A.
  • Filtered and electronically regulated outputs.
  • Supervision: - AC Fail - Battery Fail and Battery Presence.
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
  • Alarm output relay indicates that FACP input is triggered.
  • Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit.
  • Fire Alarm disconnect input options:a) Normally open (NO) or normally closed (NC) dry contact inputb) Polarity reversal input from FACP signaling circuit.

    • General Information

    Name:Altronix AL1012ACM220 Access Power Controller with Power Supply Charger, Fused Relay Outputs, 12VDC at 10A, FAI, 220VAC, BC400 Enclosure
    Category:Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
    UPC Code:782239943821
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
