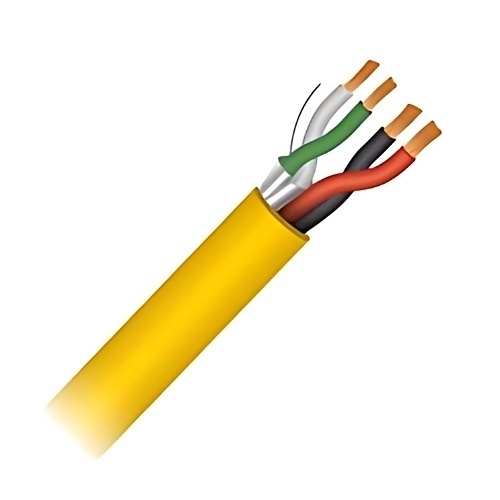

Image of 6M-222800307
Shop all Paige

Paige 222800307 22AWG 1-Pair Shielded RS485 and 18/2 Cable, Plenum, 1000' Box, Yellow

222800307|6M-222800307
Shop all Paige

Paige 222800307 22AWG 1-Pair Shielded RS485 and 18/2 Cable, Plenum, 1000' Box, Yellow

222800307|6M-222800307

Sign In for Dealer Pricing

Become an ADI Customer
Paige

Paige 222800307 22AWG 1-Pair Shielded RS485 and 18/2 Cable, Plenum, 1000' Box, Yellow

222800307 | 6M-222800307

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

OSDP reader cable plenum rated. This cable consists of 1 pairs 22 AWG stranded bare copper; color coded low smoke PVC insulation; overall aluminum polyester shield an drain wire plus 2 conductor 18 AWG stranded bare copper; overall low smoke PVC jacket. Appropriate for RS485 communication, i.e. with use of OSDP Card Readers.

Main Features

  • Advanced Security; with support for AES-128 Encryption, bi-directional and continuous monitoring and biometrics, OSDP is the future of secure and intelligent buildings
  • Advanced Features; in addition to delivering a higher level of security OSDP supports advanced user interface, including welcome messages, audio-visual user feedback, and text prompts at the reader
  • Reduced Costs; the cost and complexity of your installation and maintenance will also benefit from OSDPl; readers will only need the 2 low capacitance pairs compared to 6-12+ conductors typically used for Wiegand

    • General Information

    Name:Paige 222800307 22AWG 1-Pair Shielded RS485 and 18/2 Cable, Plenum, 1000' Box, Yellow
    Category:Paige, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
    UPC Code:
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Manufacturer Brochure
